Linde H 80 D - Tilt Cylinder

Service Training
Section 4.7
Page 4

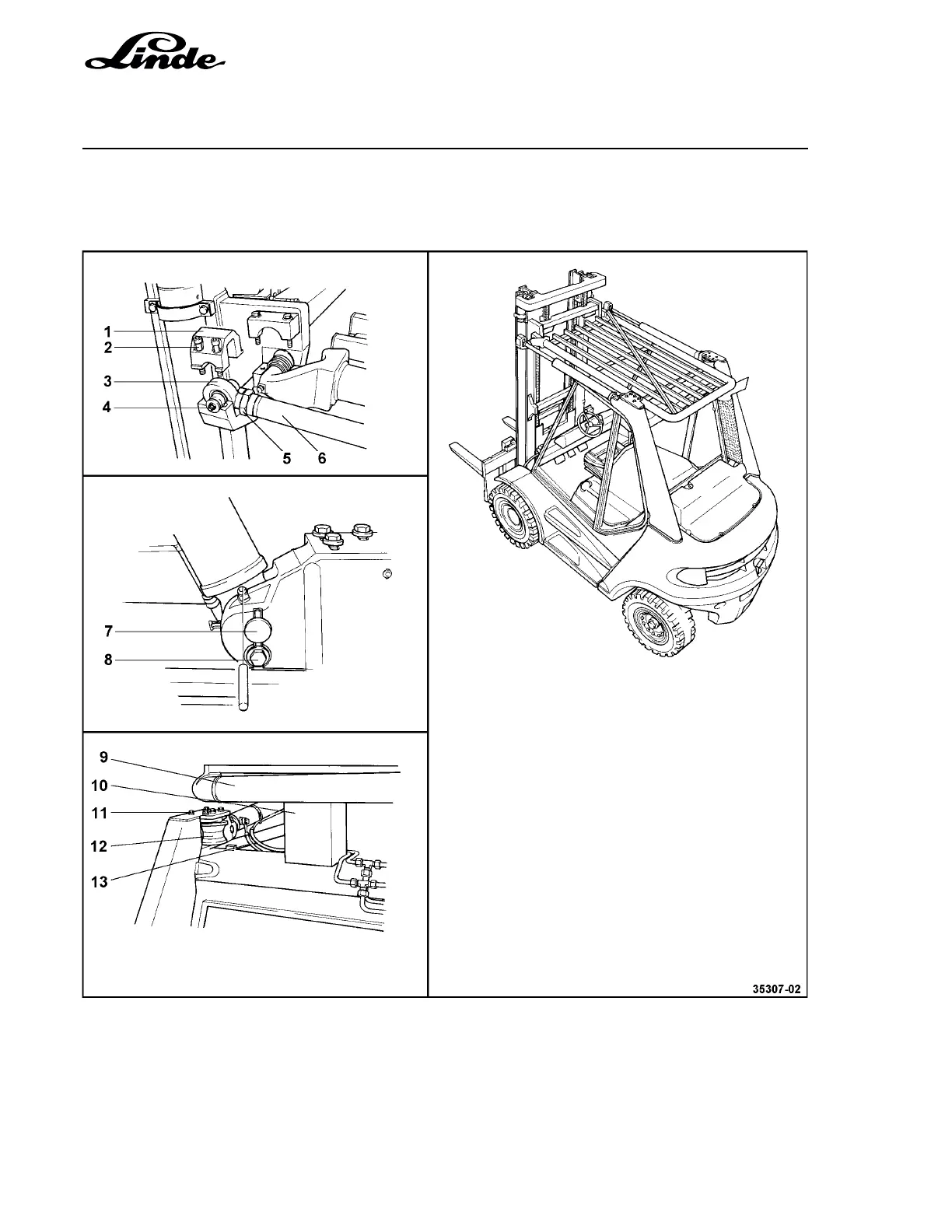

4.7.2 TILT CYLINDER
1 Bearing bracket
2 Screw
3 Eyebolt
4 Bearing pin
5 Locknut
6 Piston rod
7 Rear bearing pin
8 Retaining screw
9 Overhead guard
10 Support
11 Screw
12 Roller mount with roller
13 Hoses
