Linde H 80 D - Brake Shaft Stop Screws

Page 10
Section 4.5
Service Training
4.5.5 BRAKE SHAFT STOP SCREWS
- Connect a low pressure gauge to port BR on the travel control unit.

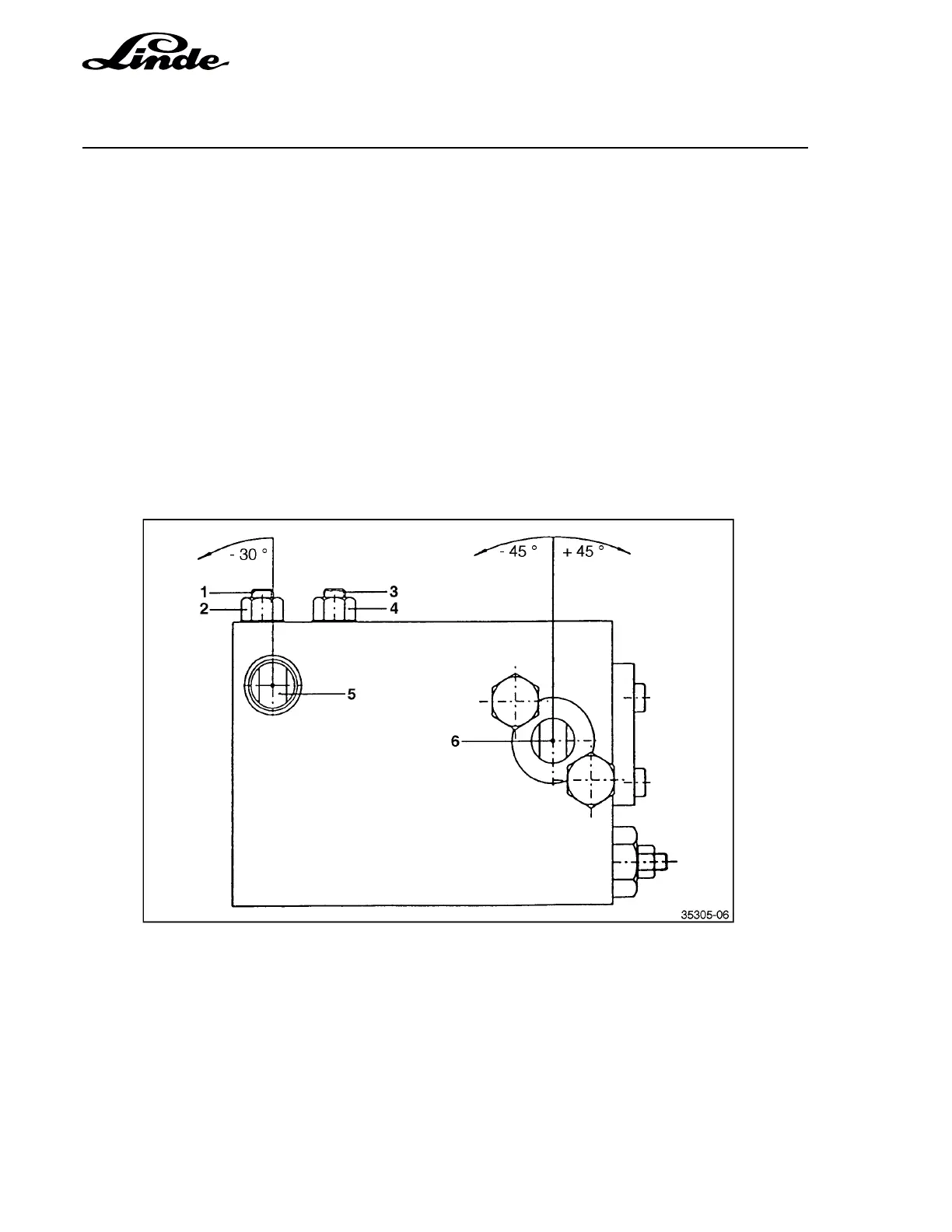

- Slacken the clamping screw on the brake lever and turn the brake shaft (5) clockwise as far as the stop.
- Loosen locknut (2).
- Start engine. Slowly screw in setscrew (1) while at the same time holding brake shaft (5) clockwise against
the stop until the brake shaft has less clearance.
- Now gently screw out setscrew (1) while holding the brakeshaft clockwise against the stop until the
maximum pressure is obtained. Then screw out setscrew a further ¼ turn and tighten locknut (2).
- Adjust the brake pedal as described in "Brake pedal".
