Linde H 80 D - Propellant Gas System; Diagram

Service Training
Section 4.9
Page 33
12.05
4.9.3 PROPELLANT GAS SYSTEM

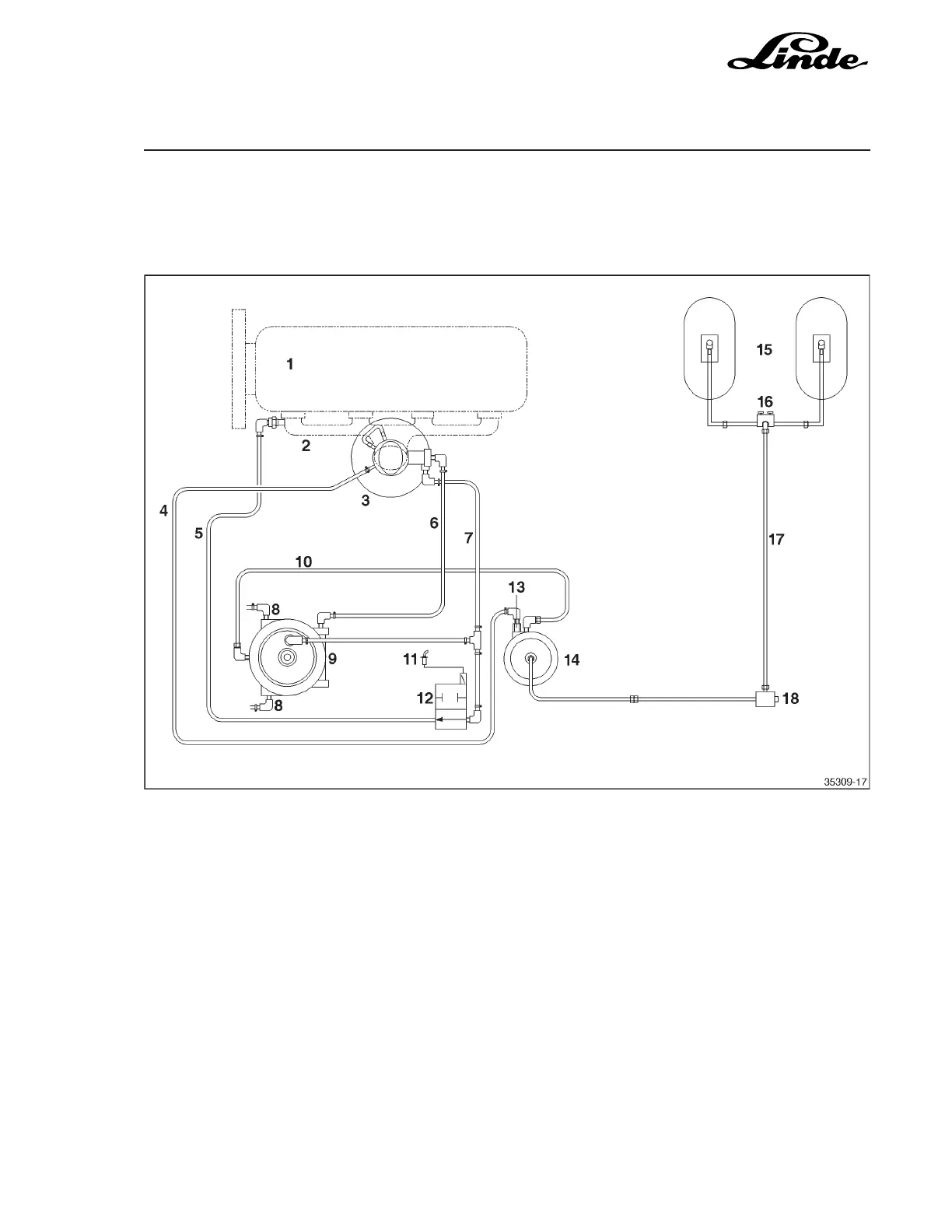

4.9.3.1 DIAGRAM
1 Drive motor
2 Intake manifold
3 Mixer
4 Vacuum conduct
Mixer - gas shutoff valve
5 Vacuum conduct
Intake manifold shutoff valve
6 Gas conduit
Vaporisor - Mixer
7 Vacuum conduct
Mixer - secondary stage of vaporisor
8 Cooling water conduit
Vaporisor heating
