Linde H 80 D - Hydraulic Remote Control HPV

Service Training
Page 4.2
Section 32
09.04

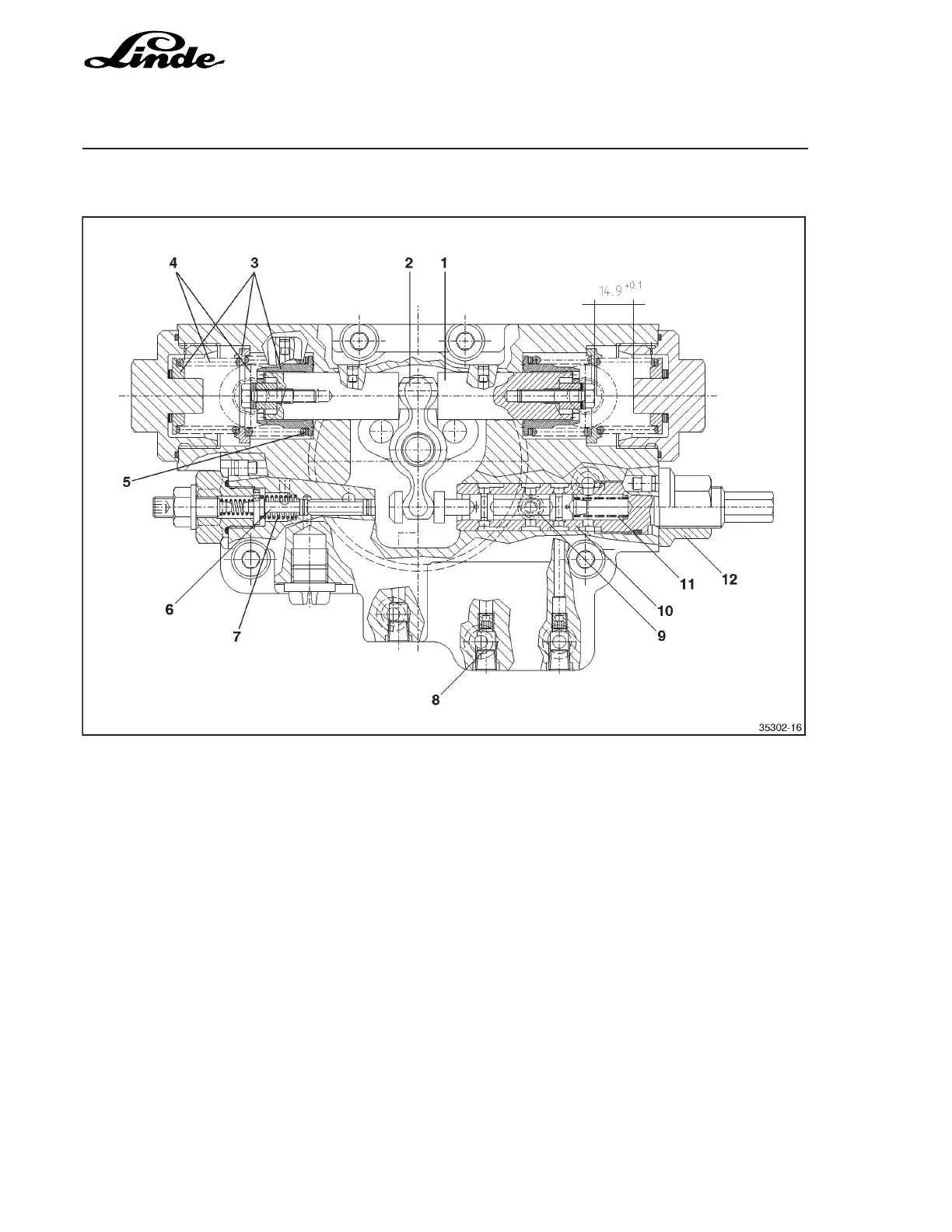

4.2.3.1.4 HYDRAULIC REMOTE CONTROL HPV 105 -02
SERVO CONTROL
1 Control piston
2 Lever
3 Spring plate
4 Spring
5 Shims
REVERSE LOCK-OUT
6 Valve spool
7 Spring
8 Control circuit nozzles
HYDRAULIC ZERO POSITION
9 Pilot
10 Pilot casing (setscrew)
11 Spring
12 Locknut
