Service Training
Section 4.4
Page 13

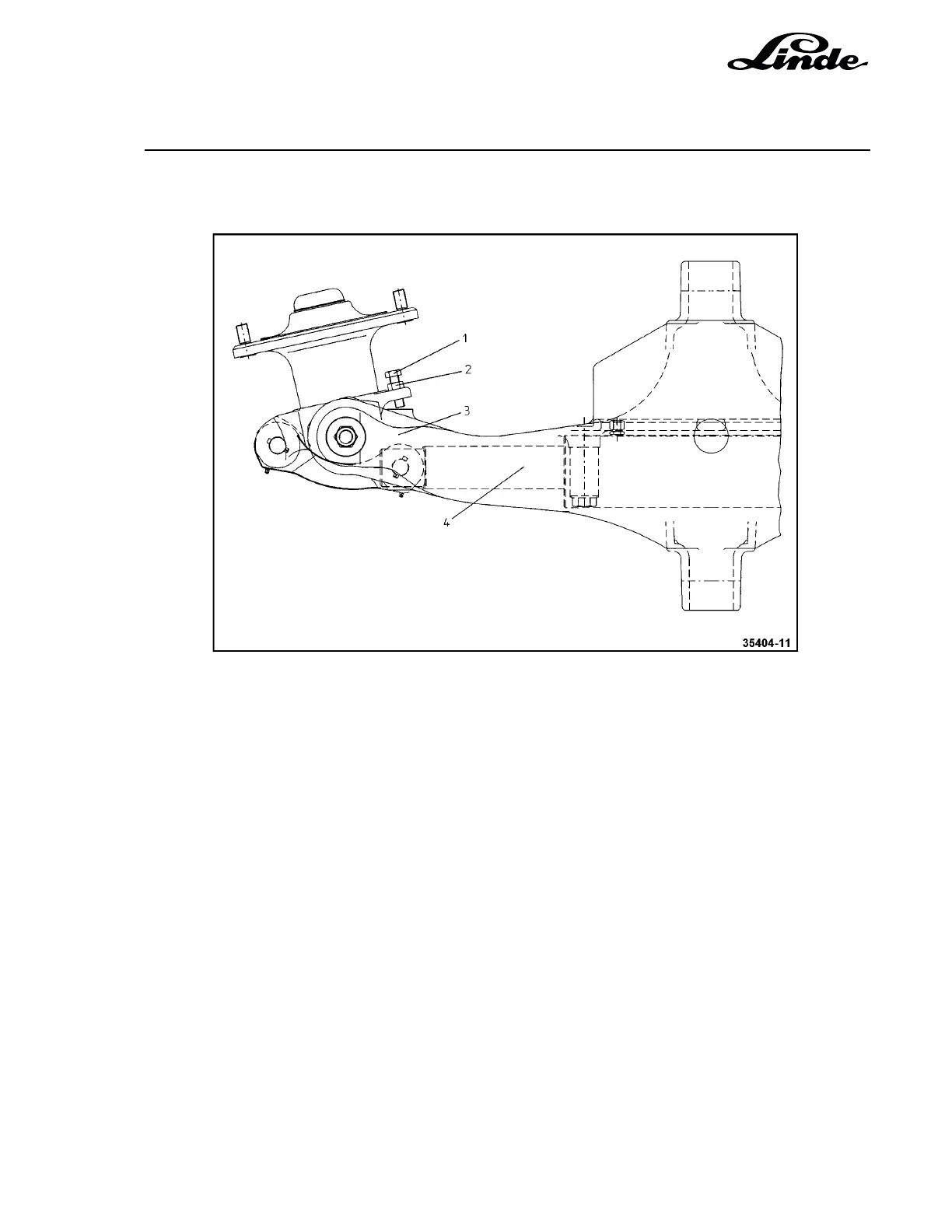

4.4.4.5 STEERING STOP ADJUSTMENT
1 Stop screw
2 Locknut
3 Axle body
4 Steering cylinder
To prevent damage to the hydraulic cylinder, check and adjust, if necessary, the left and right-hand steering
stop after repairing a steering knuckle, track rod or steering cylinder.
- Loosen the locknut (2) and screw out the M12x60 stop screw (1) approximately 10 turns.
- Start the engine and turn the steering wheel until the hydraulic cylinder is fully extended.
- Screw in the stop screw until it contacts the axle (3).
- Turn the steering wheel until the steering cylinder (4) is centred, screw in the stop screw (1) 2 to 3 turns
and lock it with the nut (2).
NOTE: Adjust the steering stop on the other side as described above.
