Read the code for the injection pump length (A) on the new injection pump, e.g. 42.
The basic dimension of the injection pump (L
0
) is 117.5 mm.
Determine the theoretical thickness of the shim (T
S
).
T
S
= E
K
- (L
0
+ A/100)
T
S
= 120.875 mm - (117.5 mm + 42/100 mm)
T
S
= 2.955 mm
Choose the thickness of the shim (S
S
) according to Table 2.
T
S
2.955 = S
S
3.0 mm
Table 2
Theor. Thickness Shim Theor. Thickness Shim
"T
S
" Thickness "Ts" Thickness
"S
S
""S
S
"
(mm) (mm) (mm) (mm)
0,95 - 1,049 1,0 2,45 - 2,549 2,5
1,05 - 1,149 1,1 2,55 - 2,649 2,6
1,15 - 1,249 1,2 2,65 - 2,749 2,7
1,25 - 1,349 1,3 2,75 - 2,849 2,8
1,35 - 1,449 1,4 2,85 - 2,949 2,9
1,45 - 1,549 1,5 2,95 - 3,049 3,0
1,55 - 1,649 1,6 3,05 - 3,149 3,1
1,65 - 1,749 1,7 3,15 - 3,249 3,2
1,75 - 1,849 1,8 3,25 - 3,349 3,3
1,85 - 1,949 1,9 3,35 - 3,449 3,4
1,95 - 2,049 2,0 3,45 - 3,549 3,5
2,05 - 2,149 2,1 3,55 - 3,649 3,6
2,15 - 2,249 2,2 3,65 - 3,749 3,7
2,25 - 2,349 2,3
2,35 - 2,449 2,4

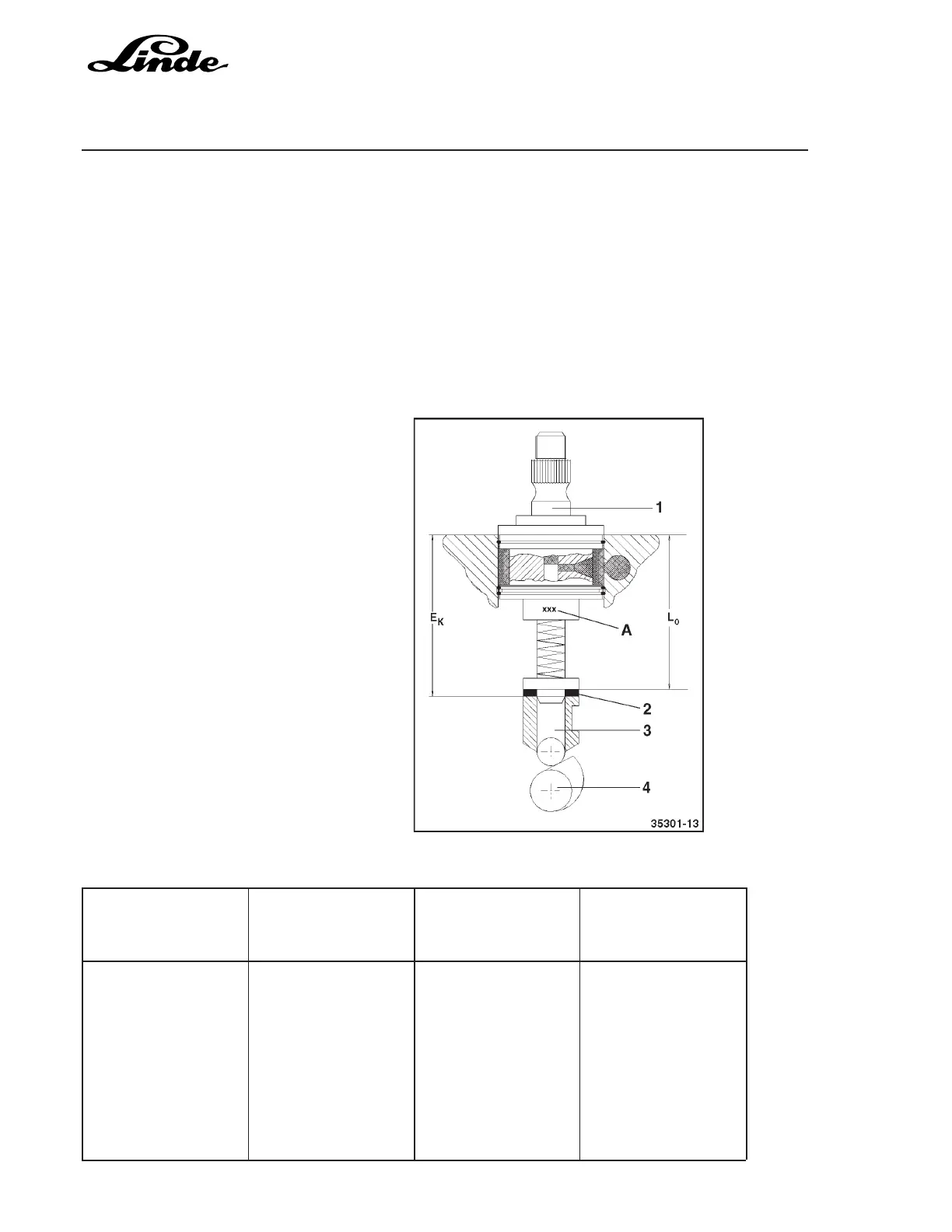

1 Injection pump
2 Shim thickness S
S
3 Roller shaft
4 Camshaft on base circle
A Code
E
K
Installation dimension
L
0
Basic dimension 117.5 mm
