Service Training
Page 45
Section 4.1
09.06

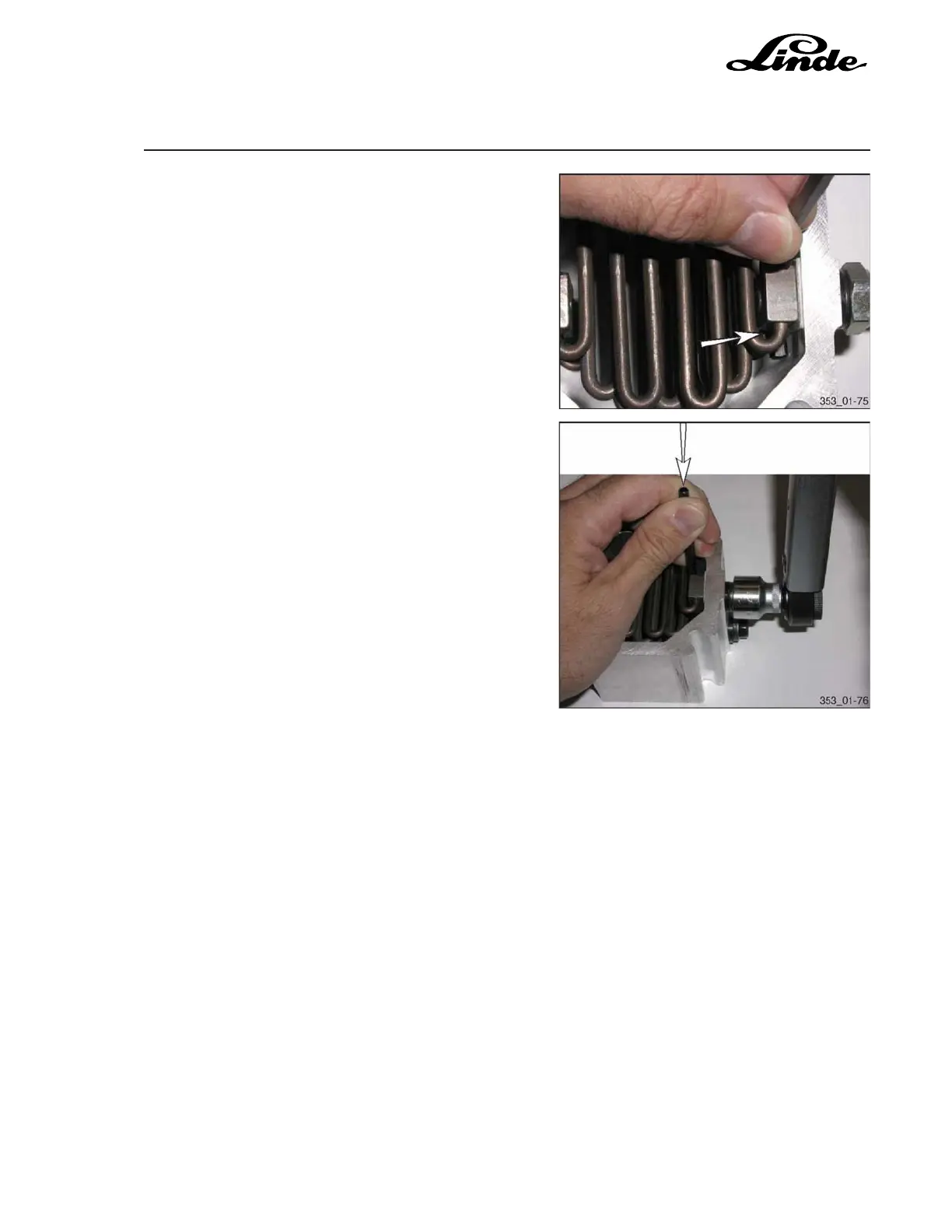

The hollow hexagon wrench must be swivelled between
the upper and the lower heating coil base to be able to
counter-support.
When tightening the special screw, always counter-
support with the hollow hexagon wrench (in direction of
the arrow), in order to avoid bending of the heating coil.
Tightening torque for special screw: 38 Nm.
