2.6 Settings for Charging Batteries
As a factory setting, LE-110SA/120SA cannot charge Ni-MH batteries
to prevent charging Alkali batteries by mistake. To charge Ni-MH
batteries by LE-110SA/120SA, following settings are necessary.

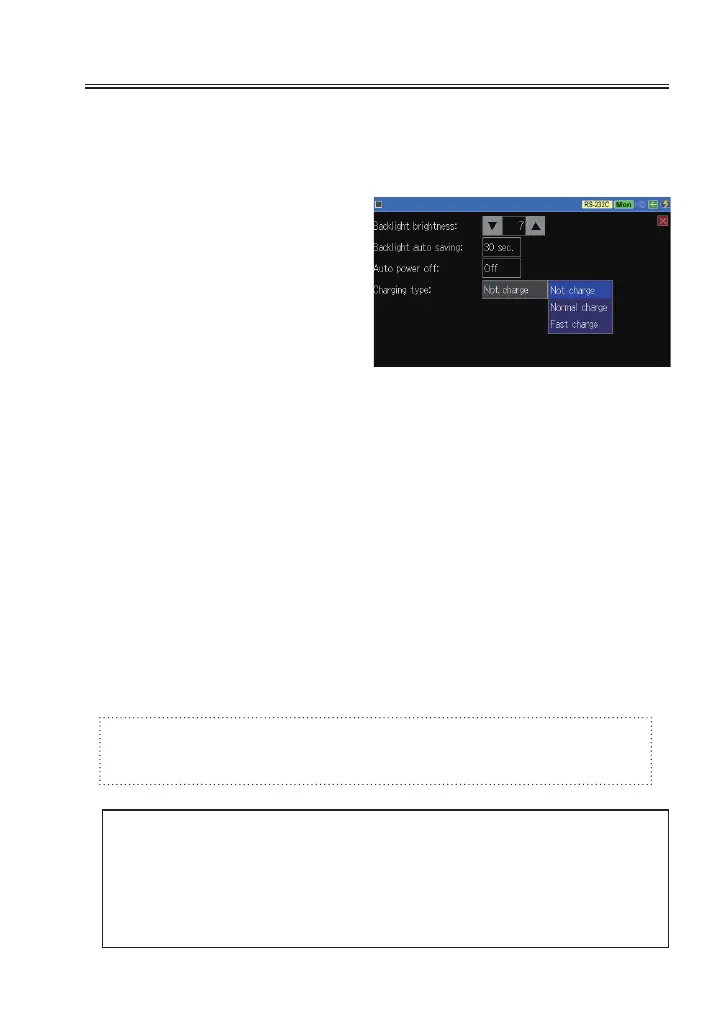

Supply the USB bus power to
the line monitor and then press
[Menu] → [System Settings] and
select [Charging type]
Not charge
：
Do not charge anything. Set this if using Alkali
batteries.
Normal charge
：
Charge 70-90% of Ni-MH batteries in about 12 hours.
Set this if charging from USB port of PC.
Fast charge
：
Charge 70-90% of Ni-MH batteries in about 4 hours
(turn o the power of line monitor). Set this if charging
from optional USB charger. If turn on the power of line
monitor, it works almost same as “Normal Charge”.
→ 1.5 Power and Battery

LE-110SA/120SA cannot charge 100% of Ni-MH batteries. To charge them full,
you need to use the Ni-MH battery charge for AA-size.
LINEEYE conrms the performance of Ni-MH battery chargers: “BQ-
CC23” and “BQCC55” of Panasonic. “TNHC-34SMC” and “TNHC-
34HBC” of Toshiba.
－－－
Attention before charging Ni-MH batteries
－－－
* Do not insert any Alkali batteries in the line monitor when selecting
“Normal Charge” and “Fast Charge”.
* “Fast Charge” exceeds the ability of USB bus power of USB 2.0 port.
Therefore, do not connect the USB port of PC and line monitor while
selecting “Fast Charge”.
