LineEye LE Series User Manual

-27-
3.5 Capture Memory
LE-110SA/120SA has an inner memory of 16Mbyte for about 4.000K
data.

Each one of send/receive data, idle time, line state consumes 4byte and time
stamp consumes 8byte of memory.

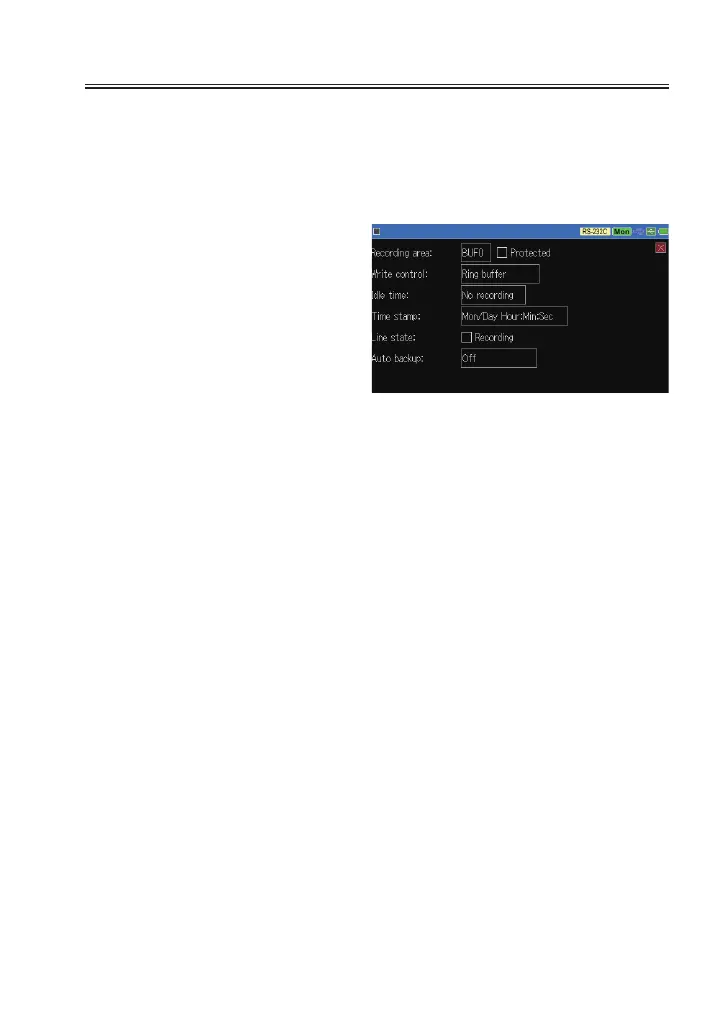

Press [Menu] → [Record control]
and set appropriate settings.
■
Recording area
Whether an inner memory is used as one capture buer (BUF0) or two
capture buffers (BUF1/BUF2) can be selected. BUF1: Inner memory is
divided in two and used the rst half (second half for BUF2).
Mark on “Protected”, if you do not want to overwrite data.
■
Write control
Ring buer
：
Data will be overwritten from the beginning of capture
buer. In short, old data will be deleted.
Full stop
：
The operation will stop as soon as a memory capacity is full.
