5.4 Retrieval Function
The retrieval function enables you to nd specic data among the vast
amount of data in the capture memory. It also enables you to count
the number which satises a particular conditions.

Setting of Retrieval Condition

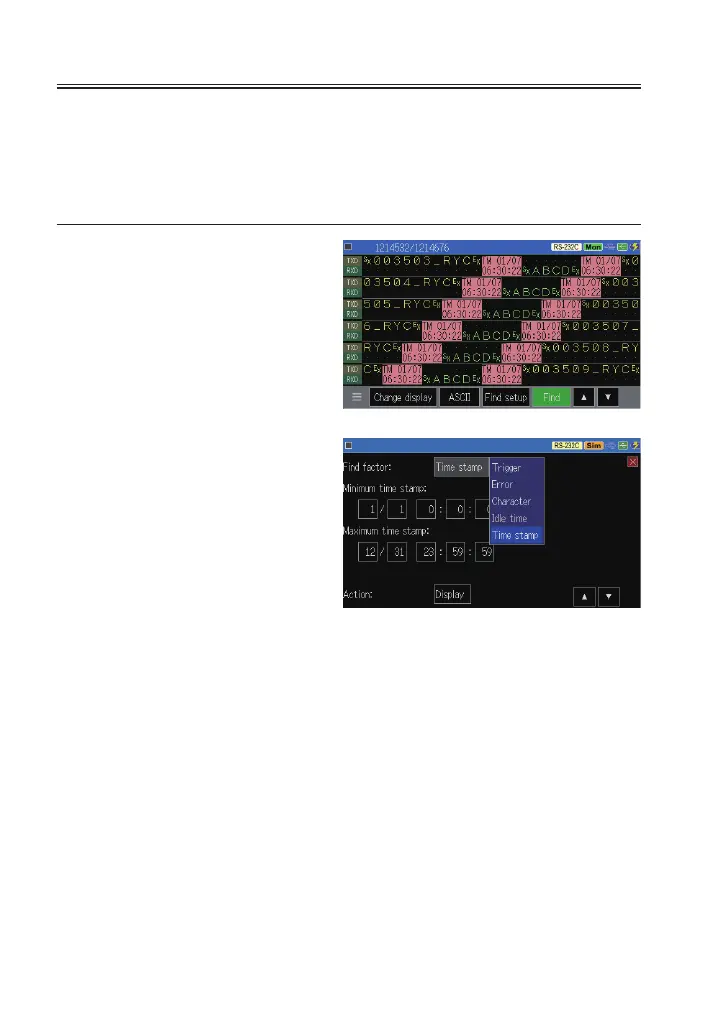

Touch [Find] and it will be
changed in green.
Select a nd factor from the list.
Trigger Find the data which satisfies the trigger condition. If the
trigger factors are “Timer” or “Counter”, you cannot use
this function.
Error Find errors or brake status.
Character Find specic character string (max 8 characters) including
don’t care (x) and bit masks (W0, W1, W2).
Idle time Find the idle time which is longer than the designated value.

The unit of idle time should be the same as idle time setting.
Time stamp Time stamp: Find the time stamp during the designated
time.

The unit of time stamp should be the same as time stamp
setting.
