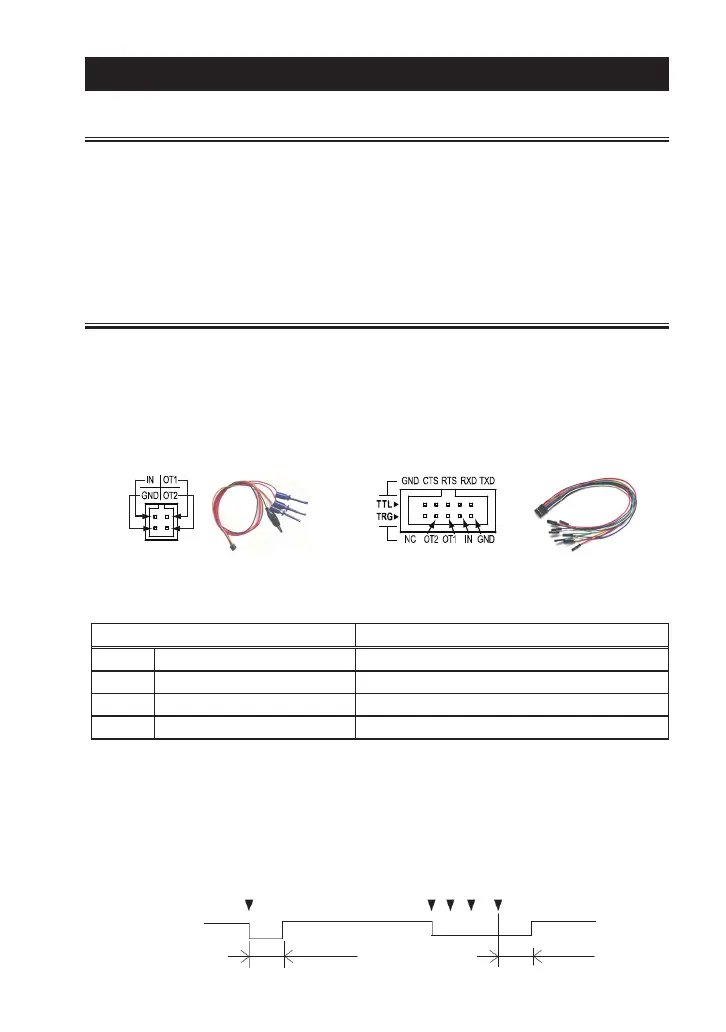

7.2 External Trigger Input/Output
With this feature the line monitor can use a trouble signal from an
external device as a trigger input, or detect a specific factor on a
communication line and tell it to an external measurement device
such as an oscilloscope.
[LE-110SA] [LE-120SA]
→
4.3 Connect to TTL interface(LE-120SA)
Signal Remark
IN External trigger input TTL level input
＊
1
OT1 External trigger outpu1 Open collector output
* 2
OT2 External trigger output2 Open collector output
* 3
GND Signal ground Connect with a GND of an external device
* 1 : +3.3V, 10KΩ pull-up Input voltage range –0.5V to 6.0V.
* 2 : +3.3V, 10KΩ pull-up When all the trigger factors occur it outputs L pulse of about 1m
second.
* 3 : +3.3V, 10KΩ pull-up When specied for a trigger action, it outputs L pulse of about 1m
second.

When a new trigger occurs while outputting the trigger pulse, it becomes HIGH
level 1m second after the last trigger occurred.
Chapter 7 Trigger Function
7.1 Trigger Function
By the trigger function the line monitor make a specic measurement
control action upon occurrence of a specific factor such as
communication error while measurement. You can measure the
response time by controlling timer/counter and can count how much
the specic event occurred. The function makes your analysis more
ecient.
External signal I/O cable
LE-4TG (same as the attached one)
1
0-pin external I/O cable
LE-10ES1 (same as the attached one)
Applicable cable
Applicable cable
H (+3.0V >)
L (+0.6V <)
Trigger occurs
About 1m second
About 1m second
H (+3.0V
＞
)
L(+0.6V
＜
)
