-16-

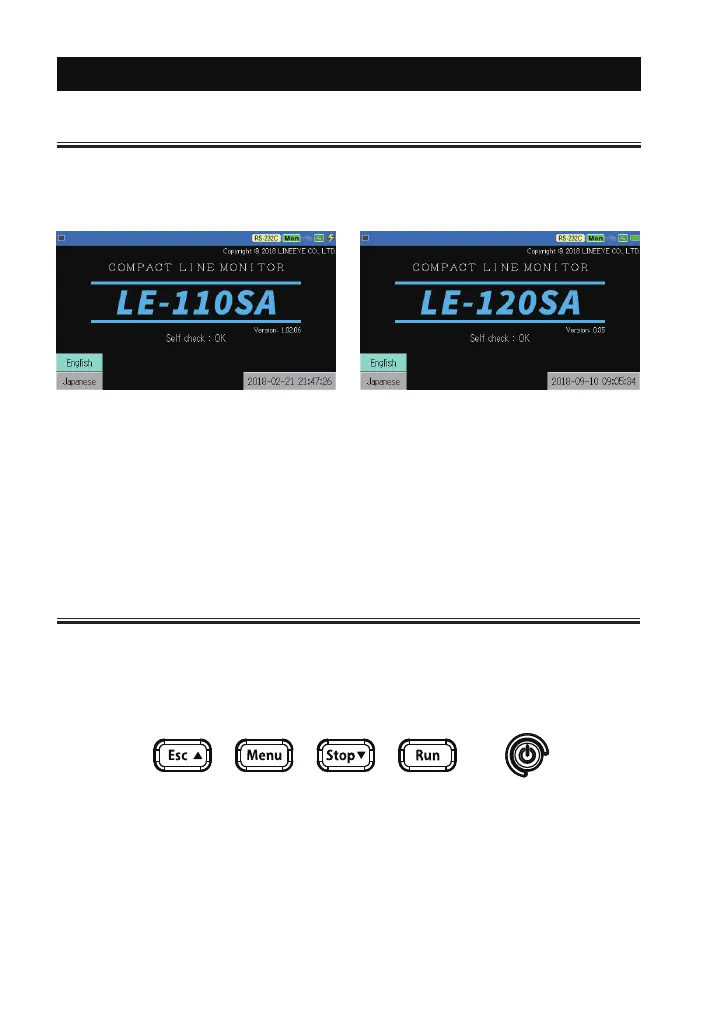

Chapter 2 Basic Operation and Set-Up
2.1 Power Source ON
Press the power switch and following screens will be displayed.
〔
LE -110SA
〕
〔
LE-120SA
〕
If “Self Check NG” is displayed, it is necessary to have a repairing.
Press the power switch for a while to turn o the power.
After a few seconds, data screen window will be displayed.
Or press [Esc] to go to the data screen window.
2.2 Operation
There are 5 keys and touch panels to control the line monitor.
Touch panels enable to select settings by soft touch or to scroll the display by
swipe.
Pressing two (three) keys at the same time has a special function.
e.g.
：
[Menu]+[Esc]
→ 5.7 Save a Screen Image
[Esc]+turn on the power →
11.1 How to make it back to default state
[Stop]+[Run]+turn on the power
→
11.2 Update Firmware
To Next Page
