Measurement data is displayed in character codes (ASCII, HEX) and errors
and breaks are displayed in special code.

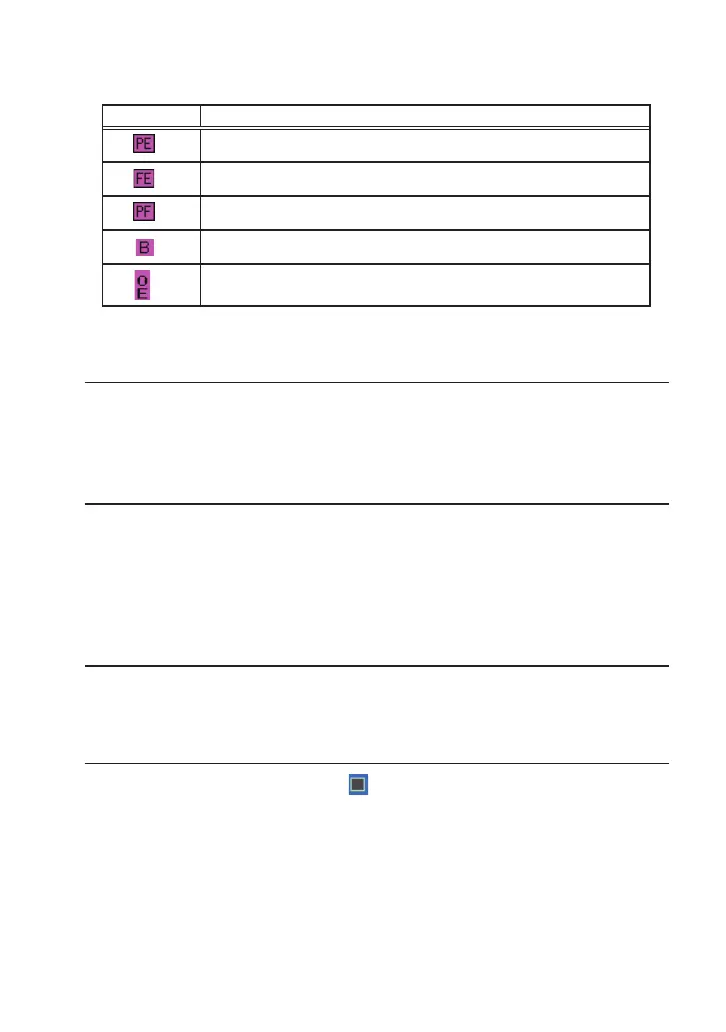

special code meaning
Parity error
Framing error
Parity error and Framing error
Break (start bit, character bit, stop bit are all zero)
Over run error
* 1
* 1
：
It is displayed if the line monitor cannot process data. (Data is too fast to process)
Stop Displaying Data
Touch [Pause disp.] in the bottom or press [Esc] to stop displaying data while
measurement are still going. The displaying color of [Pause disp.] becomes
in green. To cancel this operation, touch [Pause disp.] or [Esc] key again.
Change Data Code
Touch [ASCII] in the bottom to change the data code to JIS, EBCDIC, HEX
and (HEX).
If selecting “HEX”, it displays data in HEX, and displays error data in special
code. If selecting “(HEX)”, it displays all data in HEX including error data.
Able to select the data code in the conguration setting as well.
Change Data Format
Touch [Change display] in the bottom to change data format. Select the data
format from row data, line state and frame data.
Stop Monitoring
Press [Stop] to stop monitoring. “ ” will be displayed in the upper left.
It is able to stop monitoring automatically by setting the trigger condition and
capture memory (when capture memory is full).
→ 3.5 Capture Memory
→ Chapter 7 Trigger Function
-35-
