LineEye LE Series User Manual

-55-
■
Transmission/Reception counter (TXD Counter / RXD Cou) action
1) It is cleared to 0 when starts measurement.
2) It increments the counter when receiving data of transmission side
TXD or reception side RXD.
(The max number is 4294967295.)


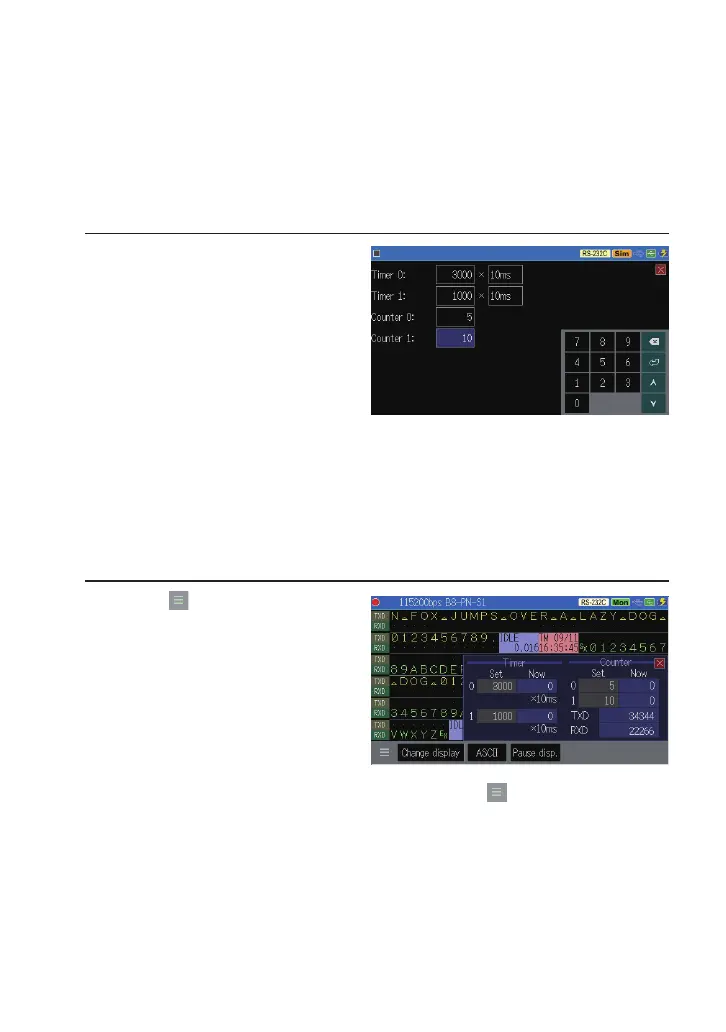

Timer / counter setting
Push [Menu] and touch [Trigger]
of the setting item to display the
trigger setting display, then touch
[Timer/Counter setting] to move
to the setting display.
Touch a setting value box of timer / counter and set the value for comparison
from 1 to 99999.
Touch a time resolution box and set it from 100m sec, 10m sec, or 1m sec.

Timer / counter display
Touch [ ] on the bottom of
the display and select [Timer/
Counter] to display Timer/
Counter window.
By touching [X] of the window, or by touching [ ] again and touching
[Timer/Counter] to close the Timer/Counter window.
