LineEye LE Series User Manual

-70-

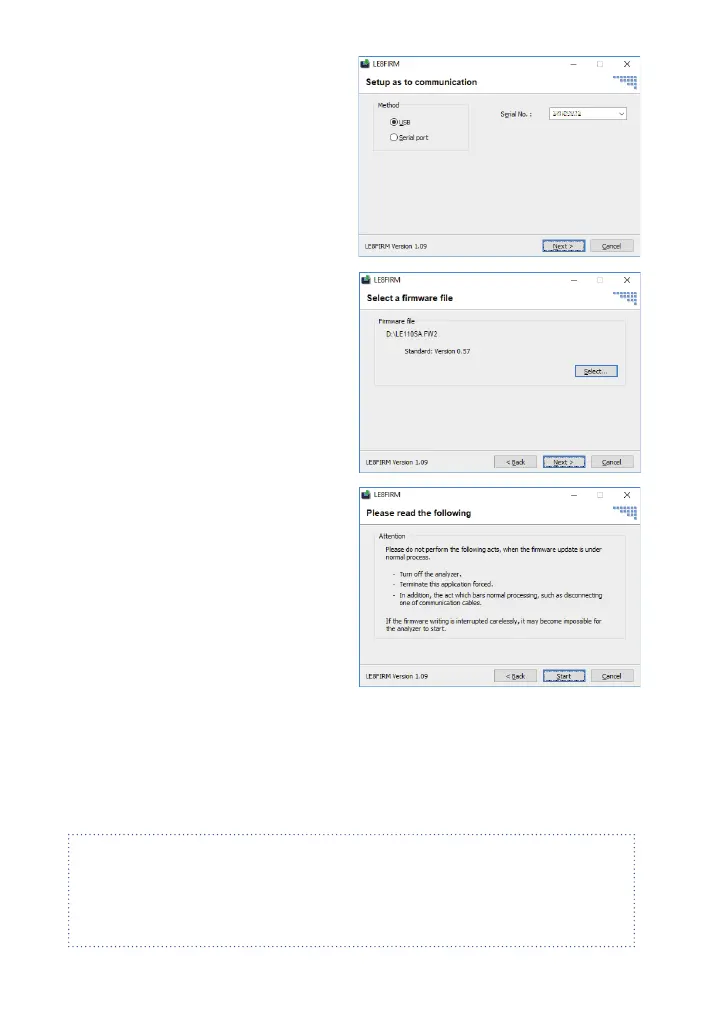

Select USB at Connection
Method and select the serial
number at Serial number. Then
click [Next].
5) Click [Select] and select the
firmware file. Then click
[Next].
6) It starts transfer of the
rmware by clicking [Start].
7)
Then the nish window appears to inform that it nished the update.
8) Click [Close] to close the software.
9) Turn o the power of line monitor and then turn on the power to run
with the new rmware.

Please refer to le8rm.txt included in the attached CD-ROM for the detail.
Attention:
Do NOT turn o the power of line monitor while rmware update. If do
so, the line monitor will be broken and not be able to run. It will need to
be repaired at LINEEY factory.
