Fig. Detail of Isolating Foil
Removing the Isolating Foil
To remove isolating foil:
► Remove isolating foil from mains control box by pulling strap.
► Check if isolating foil is complete and undamaged as shown.
► If isolating foil is damaged, contact the
manufacturer’s service department immediately.
NOTE It is recommended to wear gloves when removing the isolating foil.
8.2 Head Board and Foot Board
Remove head board or foot board as follows:
► Unlock Head Board Lock or Foot Board Lock.
► Pull head board or foot board from sleeve tting.
► Lock Head Board Lock or Foot Board Lock.
Install head board or foot board as follows:
► Unlock Head Board Lock or Foot Board Lock.
► Slide head board or foot board into sleeve tting.
► Lock Head Board Lock or Foot Board Lock.
8.3 Mattress support platform
Eleganza 4 bed has 4-part Mattress support platform consisting of Backrest, Seat section, Thighrest and Calfrest. The Mattress
support platform without x-ray cassette holder has 4 removable covers of Mattress support platform (1, 2, 3 and 4).

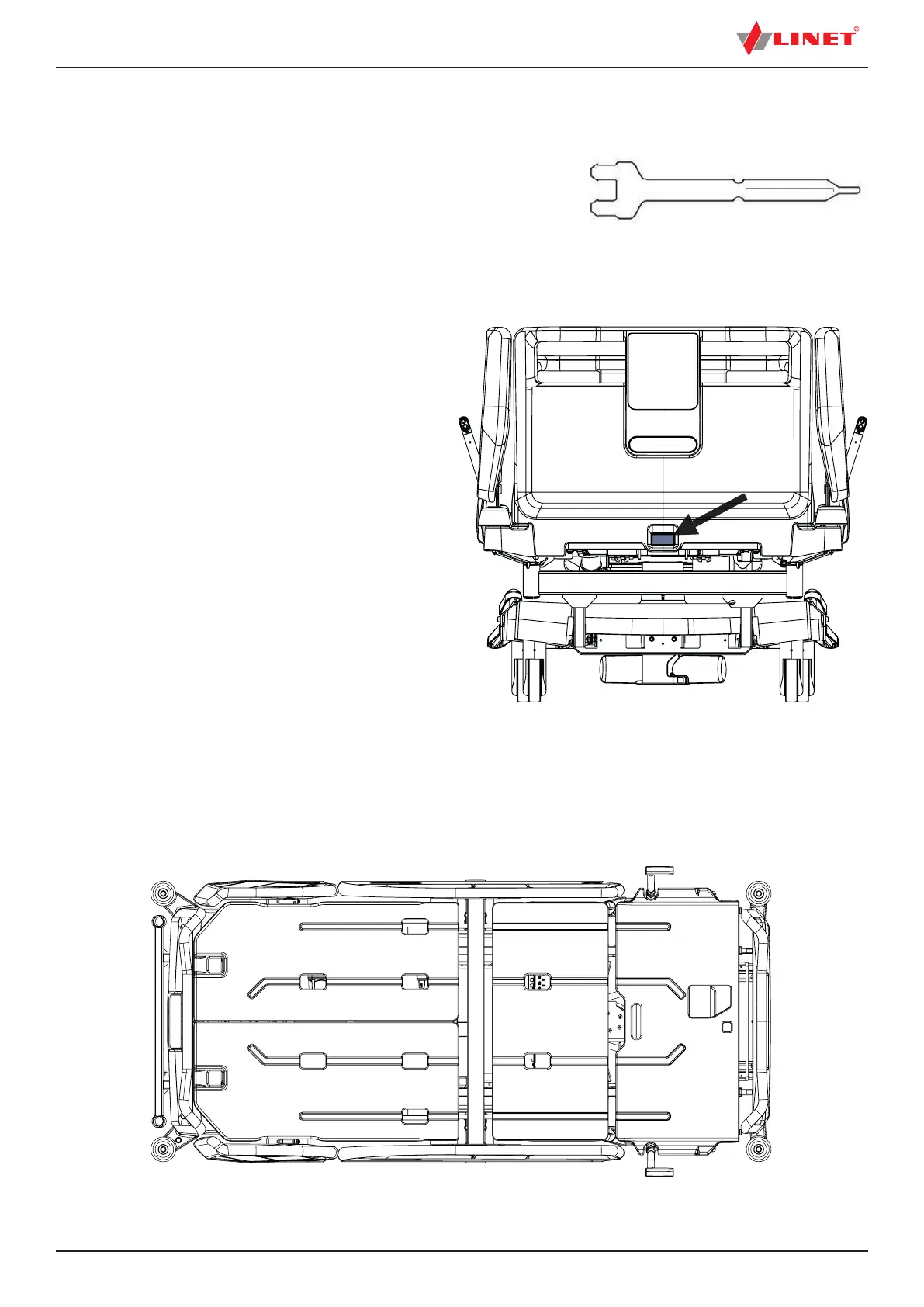

Fig. Head Board Lock
Fig. 4-part Mattress support platform
LEFT SIDE
RIGHT SIDE
HEAD END
BACKREST
SEAT SECTION
THIGHREST
CALFREST
FOOT END
1
2
3 4
