D9U001GE4-0101_05
71
Fig.

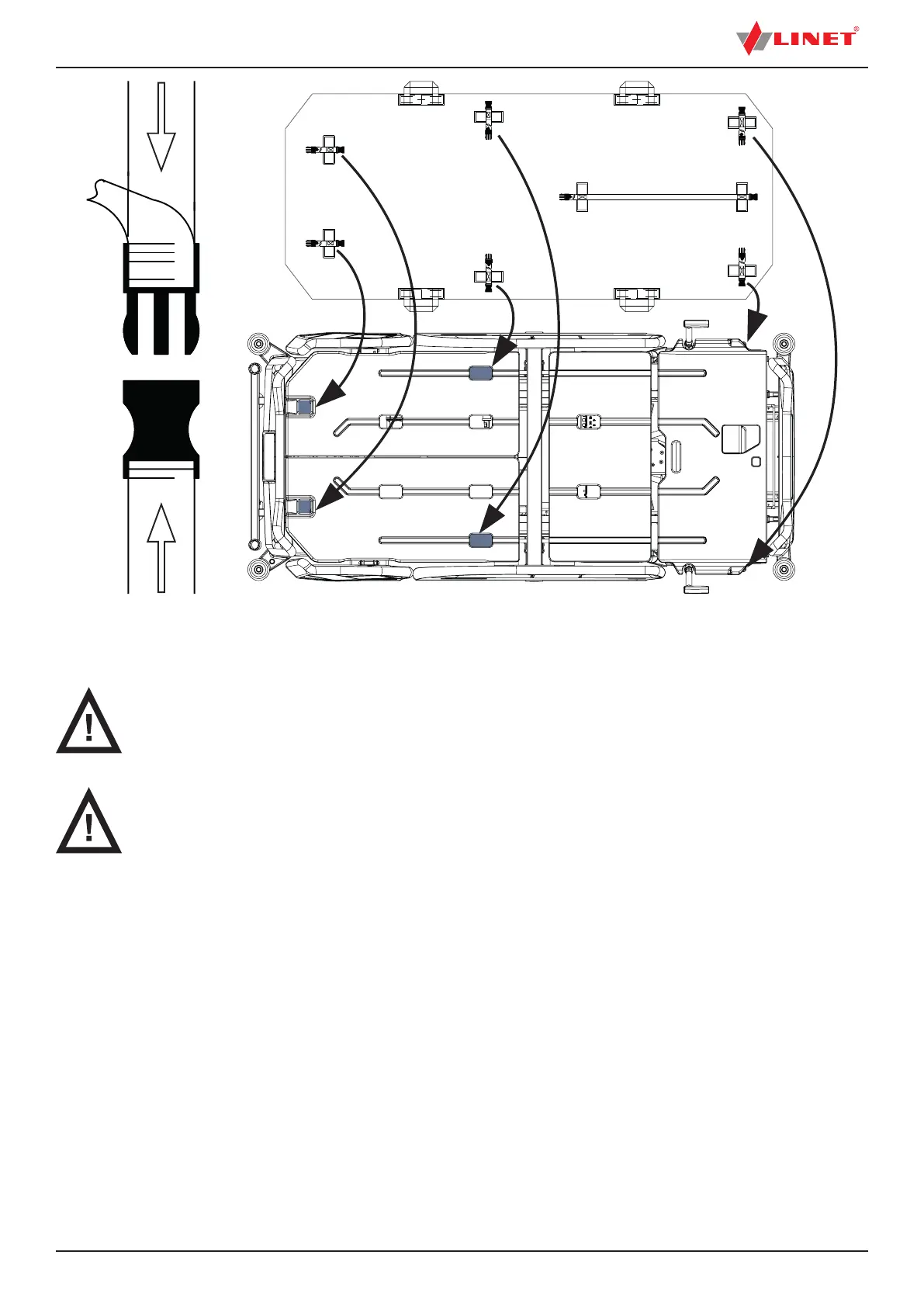

Fixation of active mattress with straps on the mattress support platform of Eleganza 4 bed
16
Accessories
W
ARNING!
Risk of injury due to incompatible accessories!
►
Use exclusively original accessories from the manufacturer
.
The manufacturer is not responsible for the use of unapproved accessories.
W
ARNING!
Risk of injury due to damaged accessories!
►
Use exclusively accessories in perfect condition.
70
72
Table of Contents
Default Chapter
3
Table of Contents
3
1 Symbols and Definitions
4
Warning Notices
4
Types of Warning Notices
4
Structure of Warning Notices
4
Instructions
4
Lists
4
Symbols on the Package
5
Symbols and Labels on the Bed
5
Serial Label with UDI
9
Acoustic Signalisation
10
Illumination
10
Definitions
11
Abbreviations
12
2 Safety Instructions
13
3 Intended Use
15
Contraindications
15
4 Product Description
16
5 Technical Specification
17
Identification of Applied Parts (Type B)
17
Scales
17
Mechanical Specifications (Eleganza 4)
17
Environment Conditions
18
Electrical Specifications (Eleganza 4)
18
Electromagnetic Compatibility
18
Manufacturer Instructions - Electromagnetic Emissions
19
Manufacturer Instructions - Electromagnetic Susceptibility
19
6 Use and Storage Conditions
20
7 Scope of Delivery and Bed Variants
21
Delivery
21
Scope of Delivery
21
Eleganza 4 Variants
21
8 Putting into Service
22
Accumulator Activation
22
Head Board and Foot Board
23
Mattress Support Platform
23
Potential Equalisation
24
Before Use
25
Transport
25
9 Power Cable
26
10 Accumulator
26
Replacing the Accumulator
27
Removing the Bed from Use
28
Deactivating the Accumulator
28
11 Manipulation
29
Siderails
29
Castor Control
32
CPR Backrest Release
32
Control Elements
33
Nurse Control Panel (Optional)
34
Iboard Basic (Standard)
37
Attendant Control Panel
39
Handset (Optional)
41
Foot Switch - Bed Height (Optional)
42
Patient Control Panels
42
Bed Positioning
43
Backrest
43
Thighrest
44
Mechanical Calfrest Adjustment
46
Bed Height
47
Autocontour
49
Examination Position
50
Emergency Trendelenburg Position
52
Anti-Trendelenburg Tilt and Trendelenburg Tilt
53
CPR Position
55
Mechanical Bed Extension
56
Cardiac Chair Position
59
Mobilisation Position
60
Ergoframe
60
12 Scales Control (Only Version with Scales)
61
Preparation
61
Taring
61
Displaying
61
Hold Mode
62
Bed Overload
62
Bed Underload
62
Weighing in Tilt
62
Zeroing Scales
62
13 Bed Exit Monitoring (Only Version with Scales)
63
Preparation
63
Activation of Bed Exit Monitoring
63
Monitored Zone
63
Bed Exit Alarm
64
Alarm Volume
64
Pause
64
Deactivation of Bed Exit Monitoring
64
14 Equipment
65
Accessory Rail with Plastic Hooks (Optional)
65
Linen Shelf (Standard)
65
Mobi-Lift ® (Optional)
66
Brake Signal (Optional)
66
I-Brake ® (Optional)
66
Retractable Fifth Castor (Optional)
66
X-Ray Examination (Optional)
67
Undercarriage Cover
68
15 Mattress
69
Installation of Passive Mattress
69
Straps with Side Release Buckles
69
Installation of Active Mattress
70
Straps with Side Release Buckles
70
16 Accessories
71
Lifting Pole
72
Infusion Stand
73
Oxygen Bottle Holder
74
Ventilation Circuit Holder
75
Writing Shelf
76
Monitor Shelf
76
USB Connector (Optional)
77
Urine Sack Holder
77
Safetymonitor
78
17 Cleaning/Disinfection
80
Cleaning (Eleganza 4)
80
Daily Cleaning
81
Cleaning before Changing Patients
81
Complete Cleaning and Disinfection
81
18 Troubleshooting
82
19 Maintenance
83
Monthly Maintenance Performed by the User
83
Maintenance Every 3 Months Performed by the User
83
Maintenance Every 12 Months Performed by the Service Department of the Manufacturer
83
Spare Parts
83
Completeness
83
Wear
83
Functioning
83
Electric Control
84
Castors
84
Accessories
84
Safety Technical Checks
84
Maintenance Active Mattress
85
LINET ® Service Department
85
20 Disposal
86
Environment Protection
86
Eleganza 4
