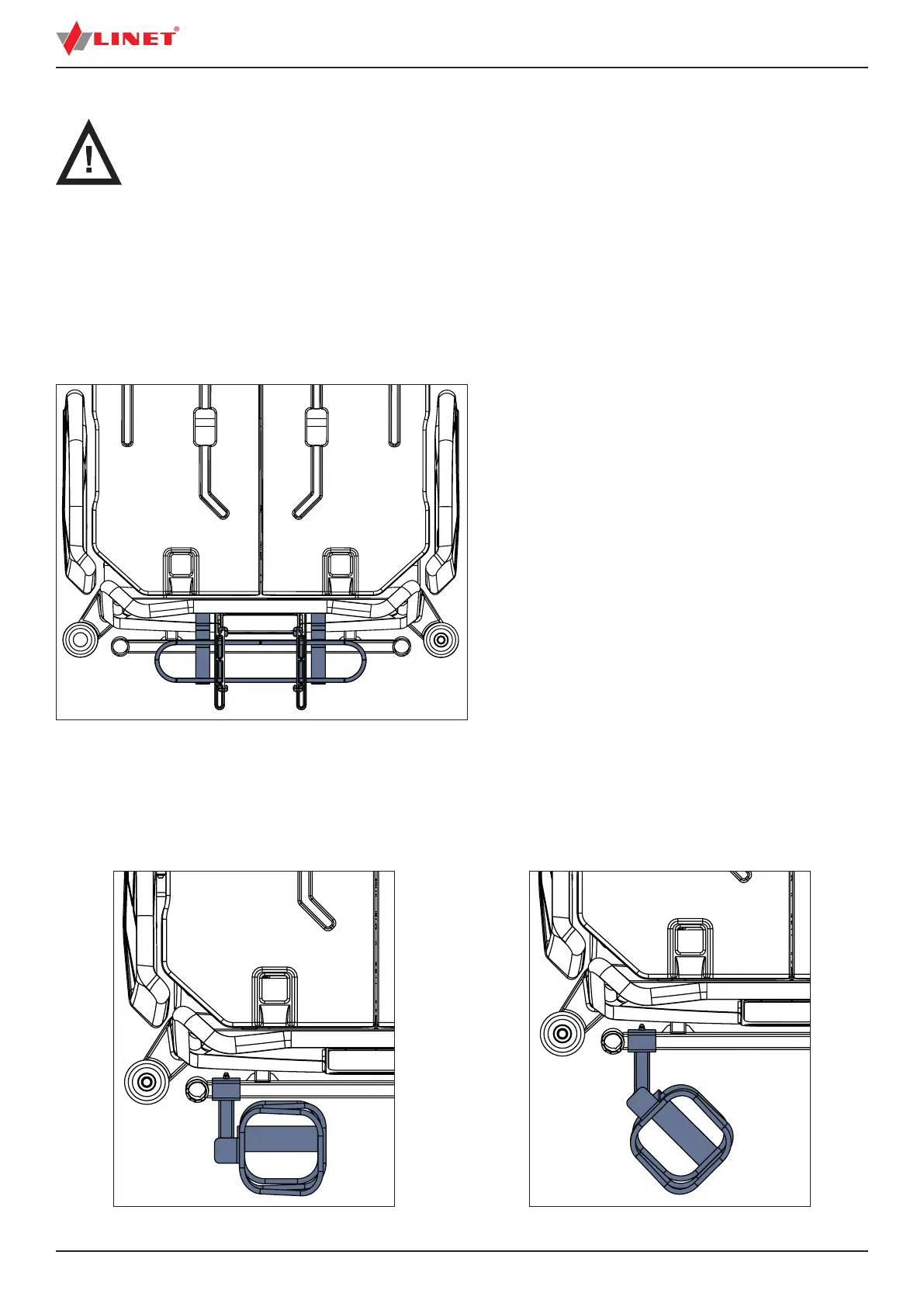

Fig. Oxygen Bottle Holder (on the head end)
16.3 Oxygen Bottle Holder
WARNING!
Risk of injury with oxygen bottle holder due to incorrect use or due to careless driving!
► Ensure the oxygen bottle holder is correctly tted in correct position.
► It is necessary to place oxygen bottle holder (with or without oxygen bottle) before transport to secure transport
position.
► Be aware of people or objects in close proximity when driving or manipulating the bed equipped with oxygen
bottle holder.
► Secure the oxygen bottles against falling or involuntary movement with rubber strap.
► Place the oxygen bottle holder on the bed by instructions in the following text.
► Ensure the oxygen bottle valve will not get damaged by careless or incorrect manipulation or placement.
The oxygen bottle holders are suitable for transporting oxygen bottles with a weight of up to 15 kg and a volume of 5 litres.
Horizontal version (Head End)
► Put oxygen bottle holder on transversal prole behind head end.
Vertical version (with adapter)
On following pictures there are 4 positions of the oxygen bottle holder with adapter.
► Put holder on sleeve ttings in multifunctional accessory adapter on head end.
► Ensure the locking pin of vertical oxygen bottle holder is locked in sleeve tting.
