11.4.2 iBoard Basic (standard)
The iBoard Basic is the standard control element for the caregivers. It is integrated in the outside of both head siderails. Only bed
version with scales can be equipped with iBoard Basic. The iBoard Basic serves for control of scales and control of Bed Exit Moni-
toring.
► Ensure that exclusively trained nursing staff operates the iBoard Basic.
Scales Section (only version with scales)
Eleganza 4 is optionally equipped with a weighing system that allows weighing the patient in bed. There are control buttons and
display for the weighing system on the Scales section of iBoard Basic. Scales functions are described in chapter Scales Control.
Bed Exit Monitoring Section (only version with scales)
Eleganza 4 is optionally equipped with a Bed Exit Monitoring system that monitores patient´s presence in bed and triggers alarms
when patient is not present in bed. There are control buttons and display for the Bed Exit Monitoring on the SafetyMonitor section of
iBoard Basic. Functions of Bed Exit Monitoring are described in chapter Bed Exit Monitoring.

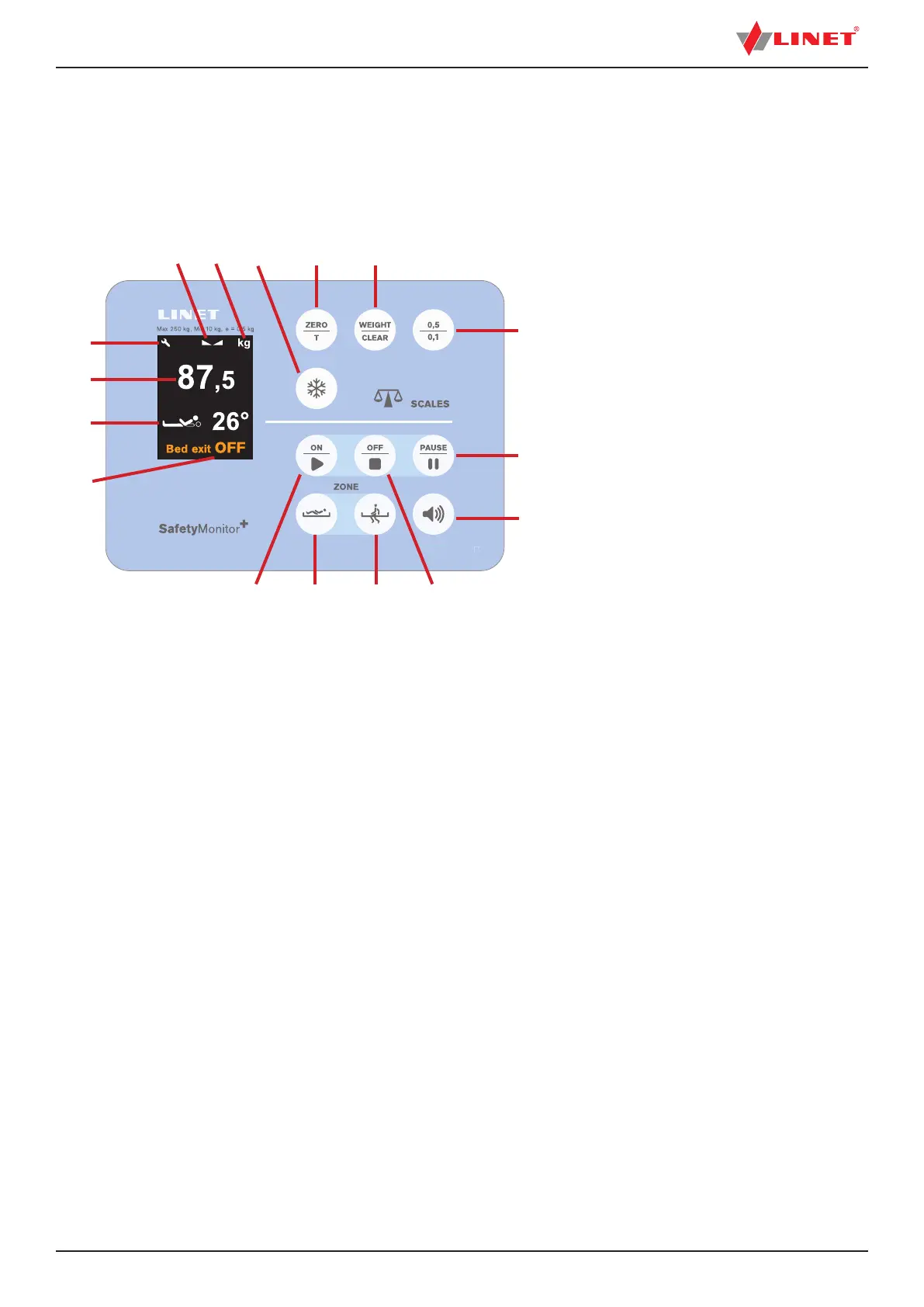

Fig. iBoard Basic
1
4
2
3
131516 14 12
11
10
9
6 7 85
1. Service check required Icon
2. Weight value
3. Backrest Angle Indicator
4. OFF icon (Bed Exit monitoring is OFF)
5. ON Button - Bed Exit monitoring
6. Inner Zone Button - Bed Exit monitoring
7. Outer Zone Button - Bed Exit monitoring
8. OFF Button - Bed Exit monitoring
9. Volume Icon (3 levels)
10. PAUSE Button - Bed Exit monitoring
11. Scale interval switch button (0,5kg/0,1kg)
12. WEIGHT/CLEAR Button (cancel)
13. ZERO/T Button (tare or zero scales)
14. HOLD Button
15. Unit of weight (kg)
16. Stabilized Scales Icon
