11.5.10 Mechanical Bed Extension
There are 2 positions of the Bed Extension.
To extend the bed:
► Pull out the Safety Catches at Foot End on the both sides of the
frame.
► Turn the Safety Catches by 90°.
The Safety Catches are released.
► Pull the Foot Board to the selected position.
► Turn the Safety Catches by 90° and push them in to fix the extension
position.
To shorten the bed:
► Pull out the Safety Catches at Foot End on both sides of the frame.
► Turn the Safety Catches by 90°.
The Safety Catches are released.
► Push the Foot Board to the selected position.
► Turn the Safety Catches by 90° and push them in to fix the extension
position.

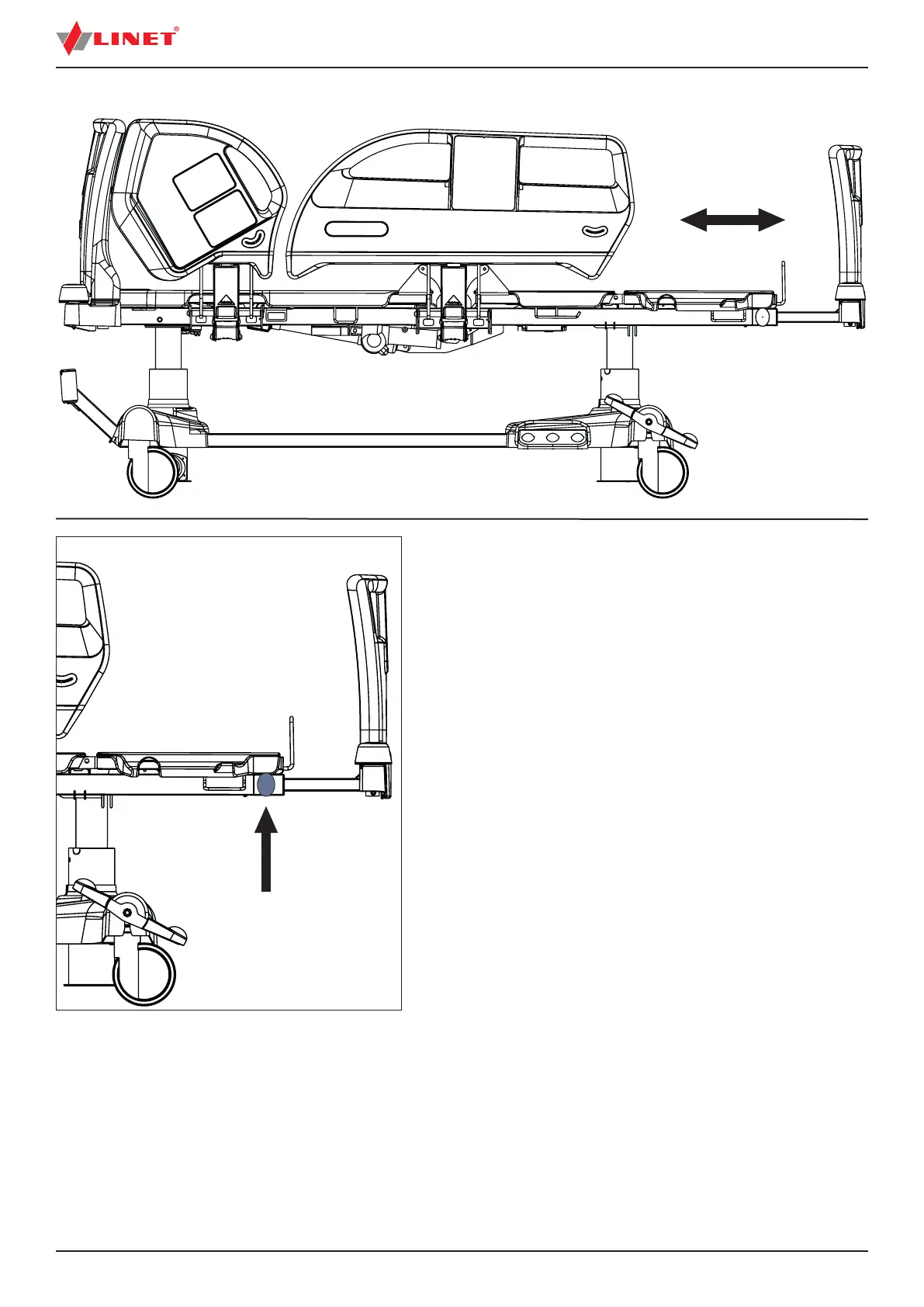

Fig. Position of Bed Extension Safety Catch
