D9U001GE4-0101_05
57
Mattress Holder
It is possible to adjust Mattress Holder when the bed without mattress is extended.
T
o adjust the Mattress Holder:
► Remove the Calfrest cover from the mattress support platform.
► Insert the catches on both sides of the Mattress Holder to the selected positions.
► Put the Calfrest cover back to its place on the mattress support platform.

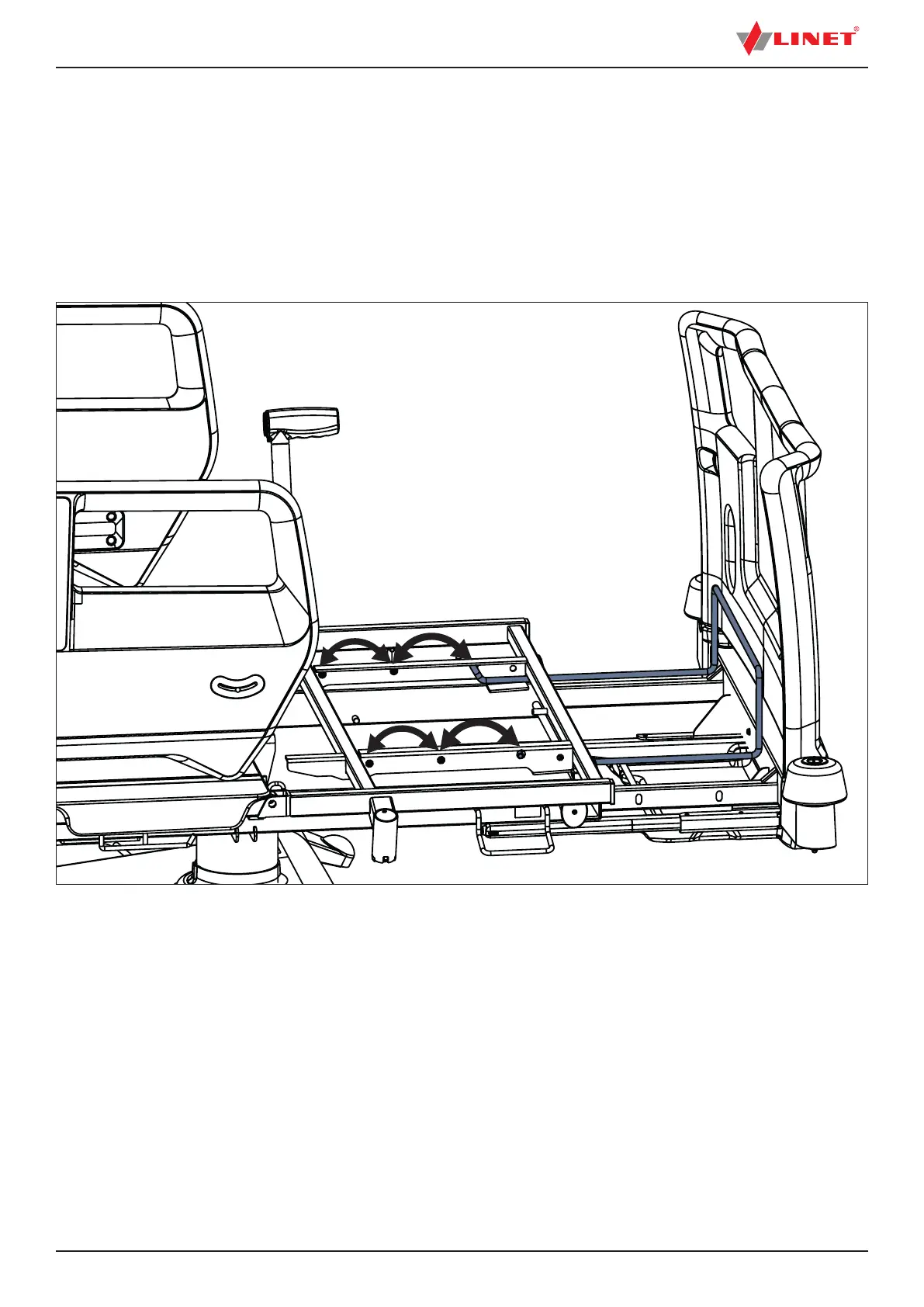

Fig.
Adjustment of the Mattress Holder
56
58
