Page 3-6
MPS Motor Protection System Rev. 6-F-022117
System Wiring

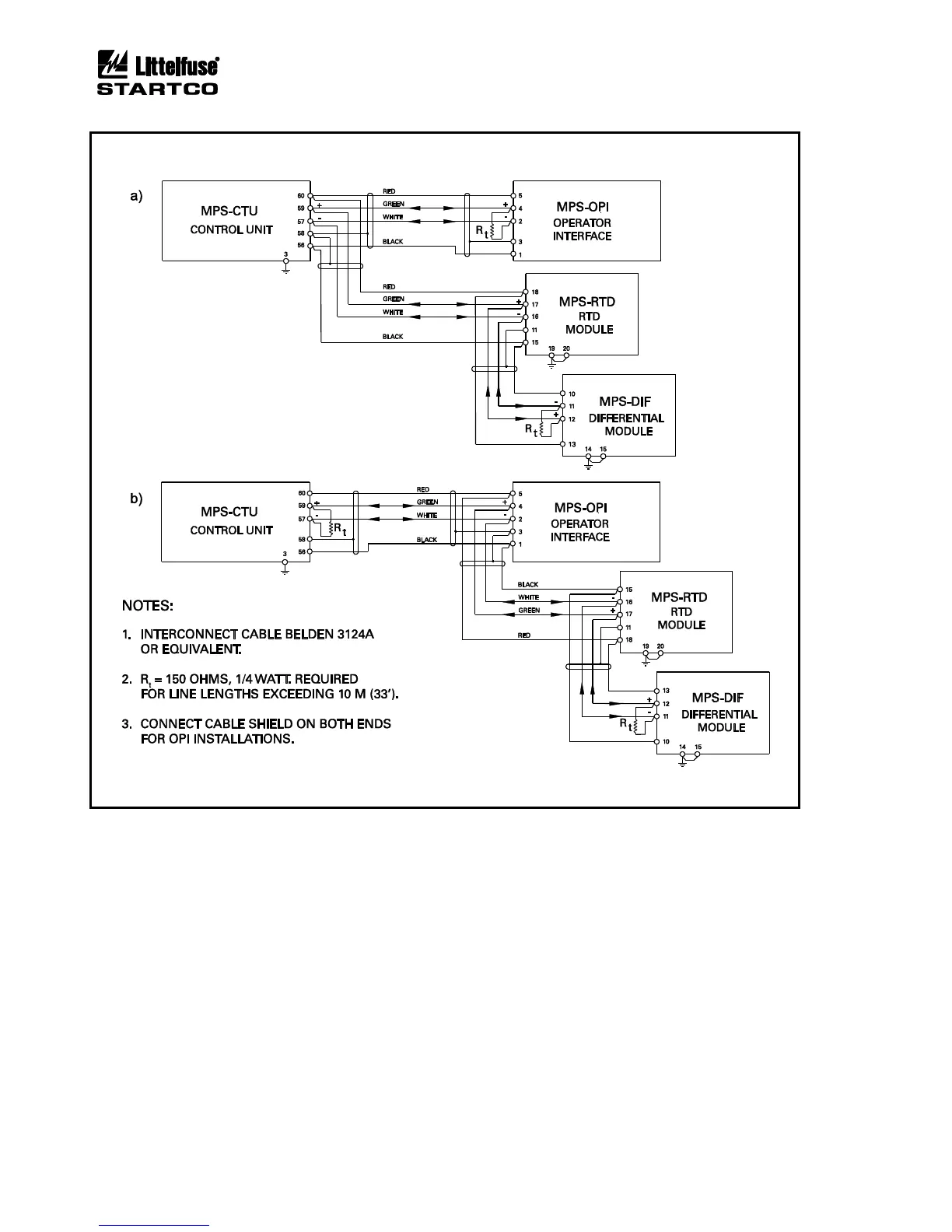

FIGURE 3.9 Two Examples of I/O Module Connections.
