Littelfuse MPS - Core Balance Connection; MPS Summation Connection

Page 3-8
MPS Motor Protection System Rev. 6-F-022117
System Wiring

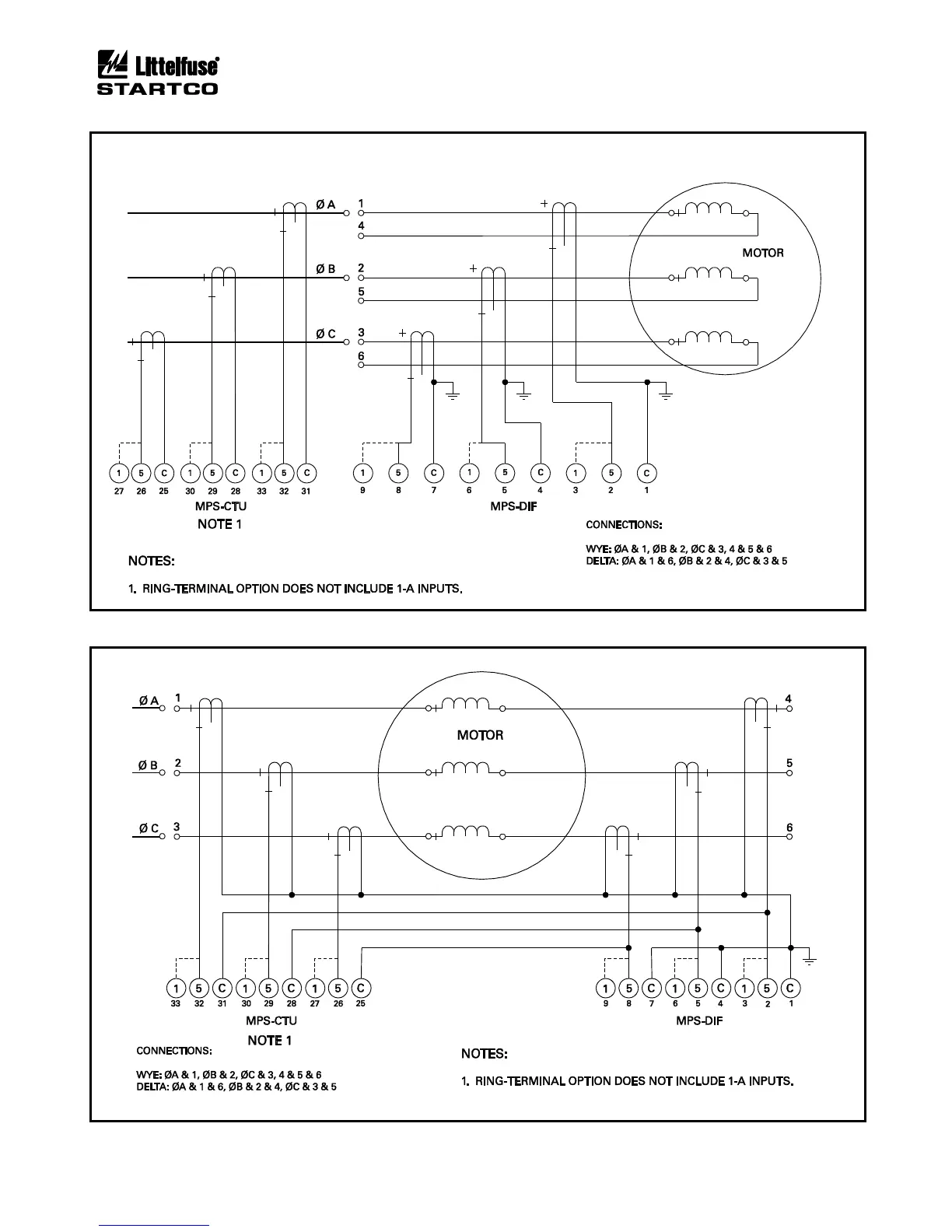

FIGURE 3.11 Core Balance Connection.
FIGURE 3.12 MPS Summation Connection.
