Littelfuse MPS - Two-Speed Constant- and Variable-Torque-Starter Connections; Two-Speed Constant-Horsepower-Starter Connection

Page 6-9
MPS Motor Protection System Rev. 6-F-022117
Starter Functions

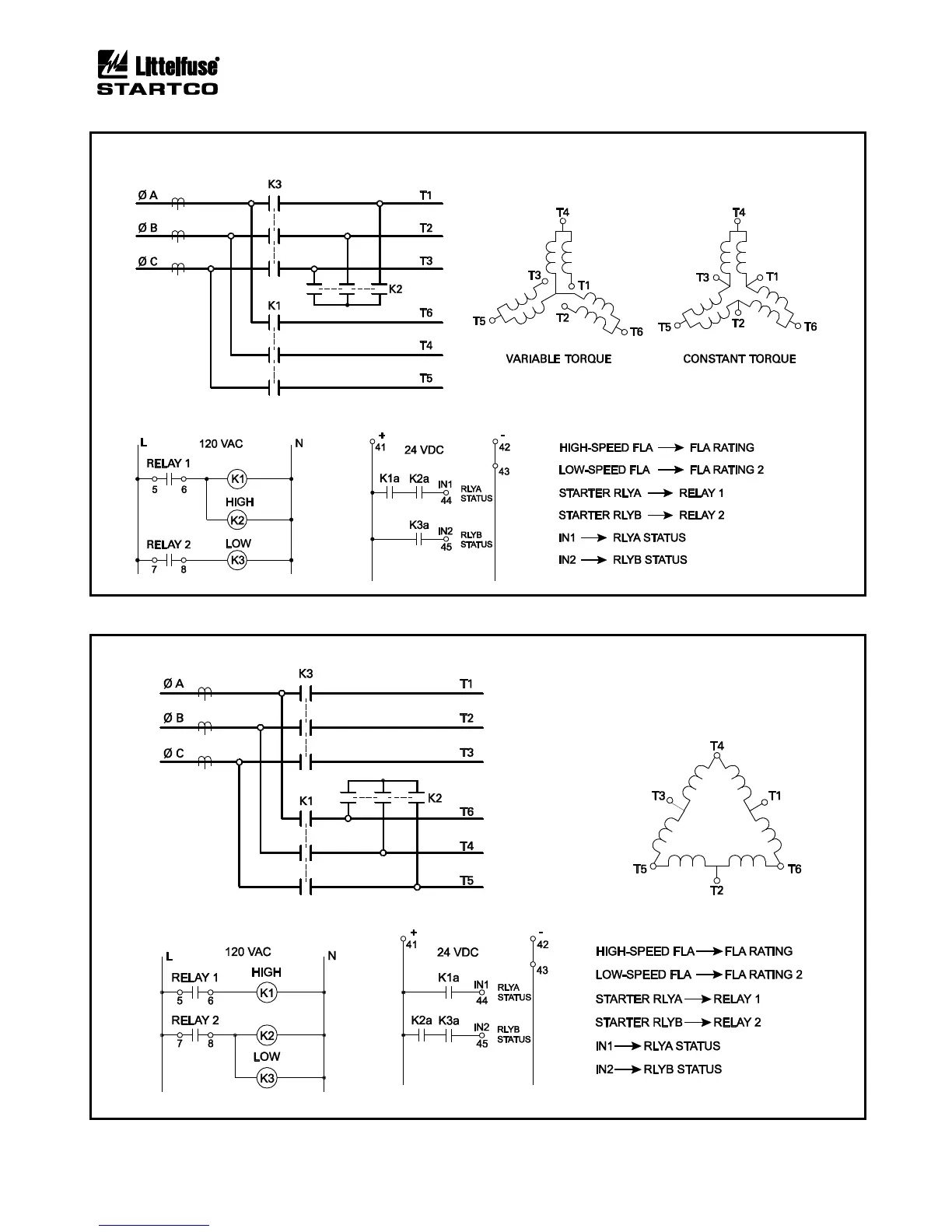

FIGURE 6.14 Two-Speed Constant- and Variable-Torque-Starter Connections.
FIGURE 6.15 Two-Speed Constant-Horsepower-Starter Connection.
