Page 6-4
MPS Motor Protection System Rev. 6-F-022117
Starter Functions

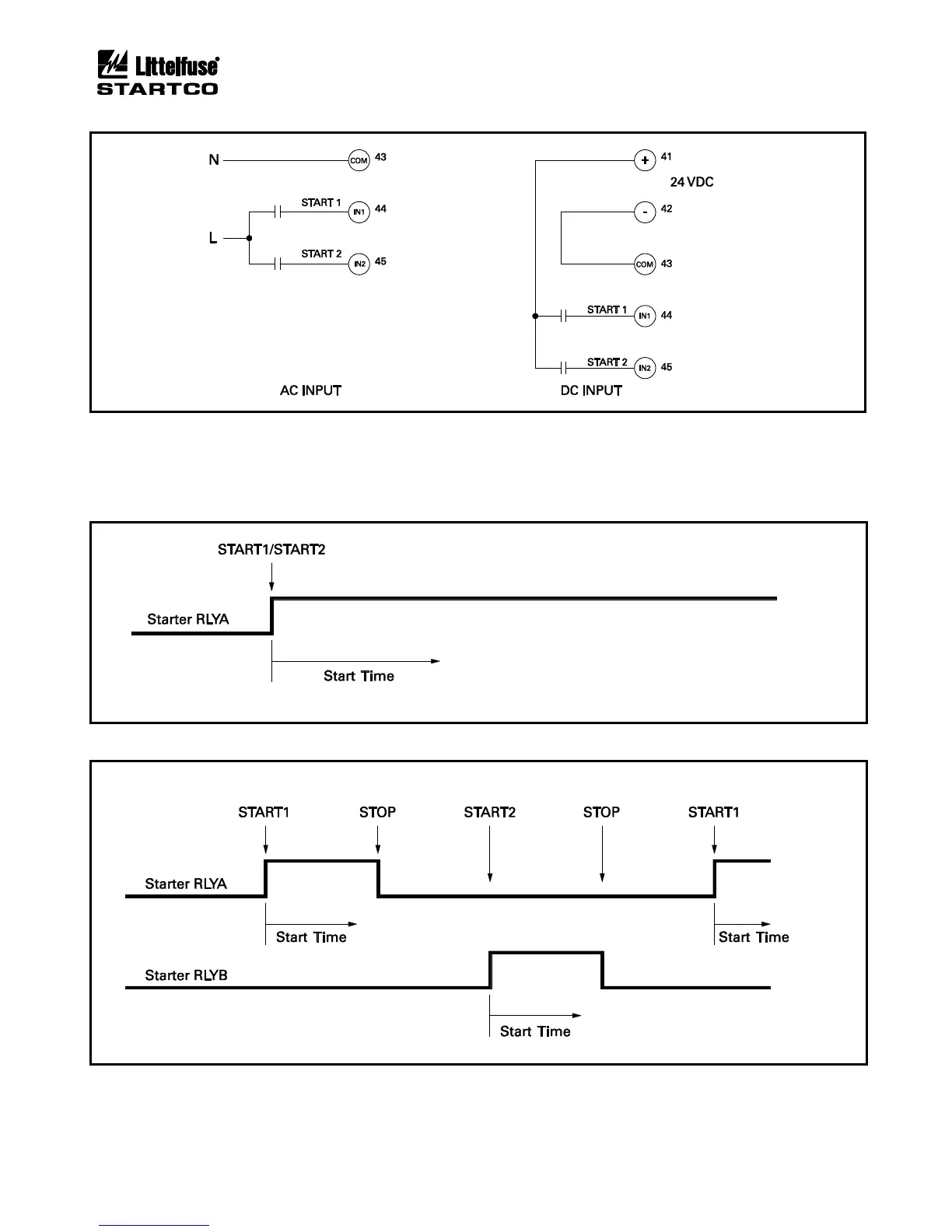

FIGURE 6.2 Typical 2-Wire Control.
6.2 STARTER TIMING SEQUENCES
The MPS uses one of six timing sequences to implement the various starter types. These time-based starter sequences
are shown in Figs. 6.3 to 6.8.
FIGURE 6.3 Starter Sequence 1.
FIGURE 6.4 Starter Sequence 2.
