SCPC System • System description
CP_SEM_60-03-00.002 21
CPU board (ZDS 2006)

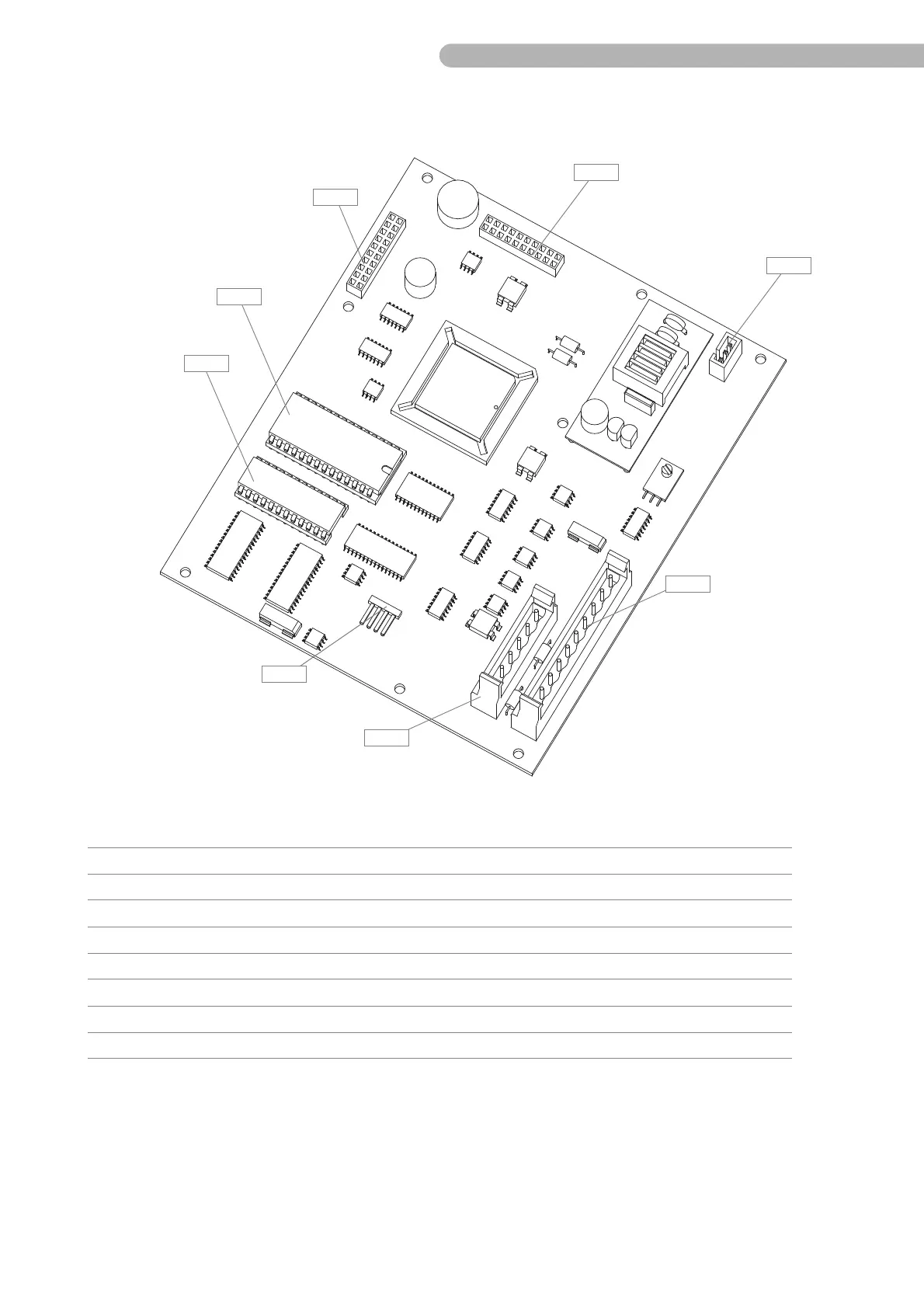

fig. 5: CPU board (ZDS 2006)
B 5
B 9
B 11
B 12
B 6
B 7
B 8
B 10
Mod. Item Description Number SP number
B5Connection for Backplane circuit board (CON 12) CON 1
B6HLM connection (not used) CON 2
B7Connection for Display (display) circuit board CON 3
B8Connection for Display (touch screen) circuit board CON 4
B9Connection for Interface (ZIS) circuit board CON 6
B10Connection for Display (LCB lighting) circuit board CON 7
B11EPROM (firmware) ZDS IC 3 93-484-236
B12GAL (ADRDEC3) IC 9 93-484-112
