SCPC System • Replacing components
CP_SEM_60-03-00.002 53
6.2 Batteries
The SCPC System has an integrated test routine for the batteries (see operating instructions). If the
batteries no longer match the required performance values or are faulty, they must be replaced
immediately (to ensure the UPS function).
6.2.1 Removing the batteries

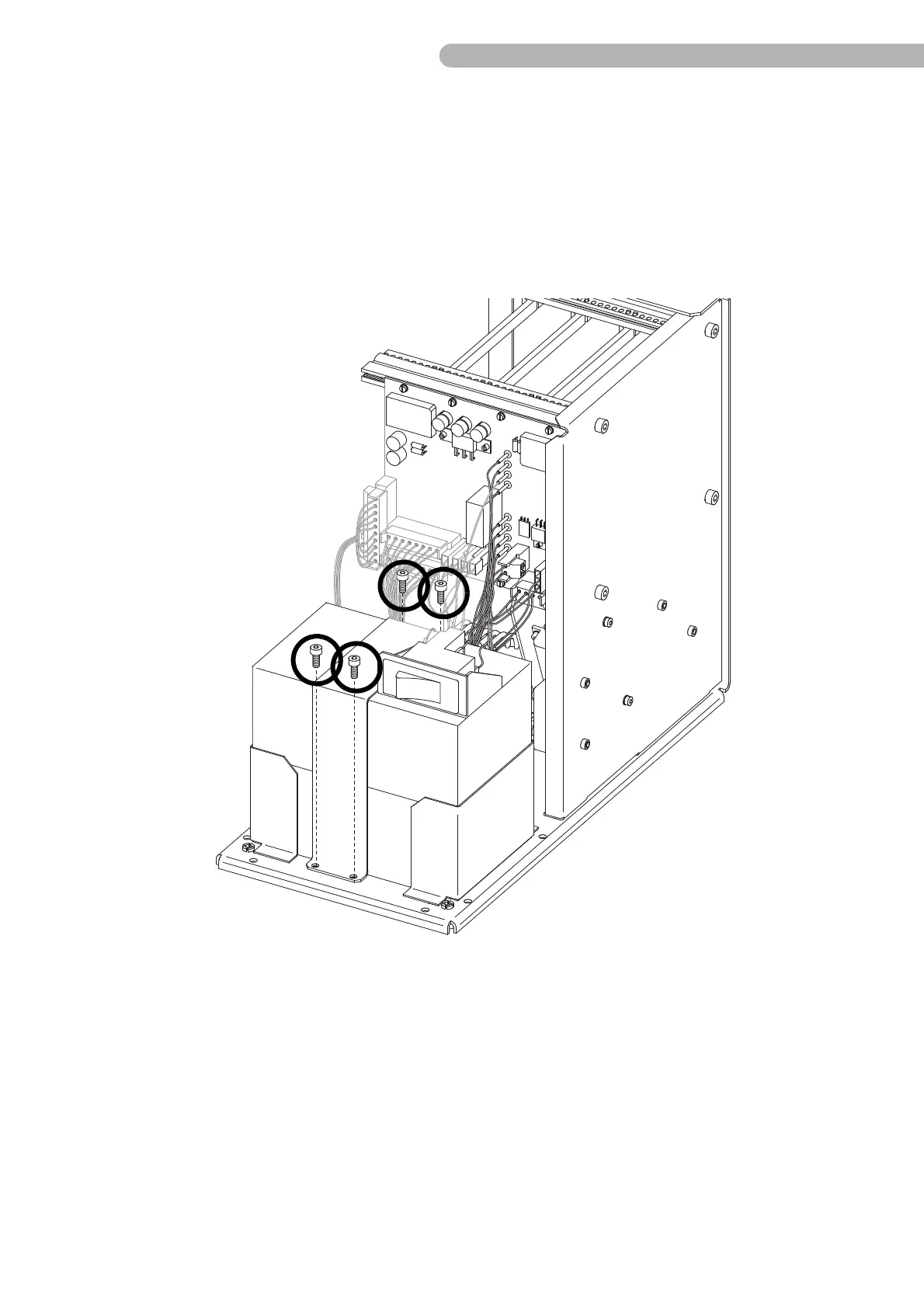

fig. 23: Removing the batteries 1
◗ Unscrew the four screws indicated (Allen key size 3) including the washers. It is recommended that
you use a (magnetic, if possible) hexagon screwdriver with a long shaft and spherical head.
