SCPC System • Replacing components
60 CP_SEM_60-03-00.002
6.6 Discharge resistor
It may be necessary to replace the discharge resistor if the corresponding messages (e.g. error number
15) indicate a fault in the discharge circuit.
6.6.1 Removing the discharge resistor

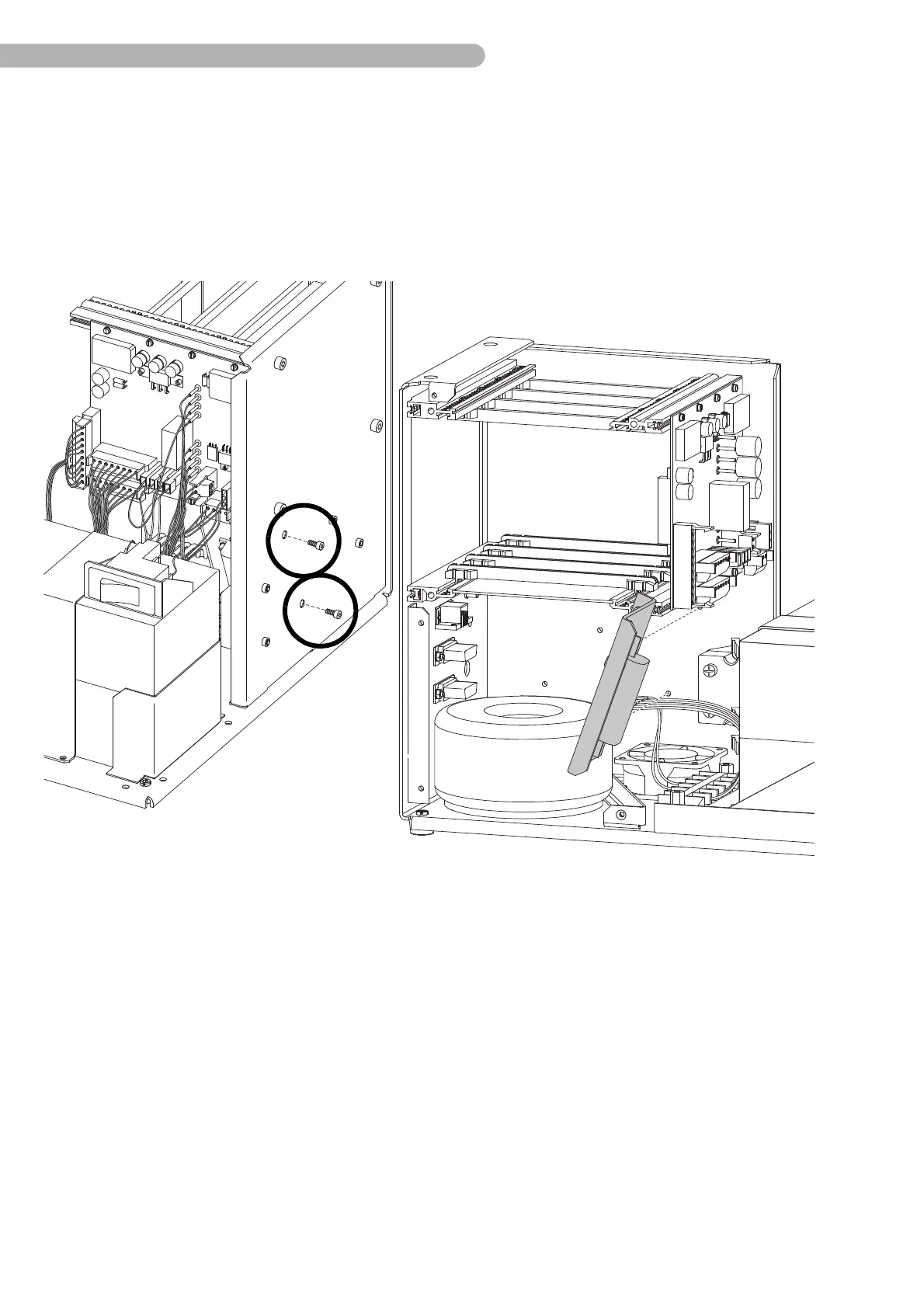

fig. 31: Removing the discharge resistor
◗ Disconnect the two connectors on the discharge resistor.
◗ Unfasten the two screws as shown (Allen key size 2.5) on the outside of the frame plate.
◗ Remove the holding angle along with the discharge resistor.
◗ Once removed, the two screws on the holding angle fixing the discharge resistor in place can be
unfastened.
Assemble the new discharge resistor in reverse order.
