LivaNova SCPC - Card and Module Support Assembly

SCPC System • System description
CP_SEM_60-03-00.002 23
3.2.5 Card and module support assembly

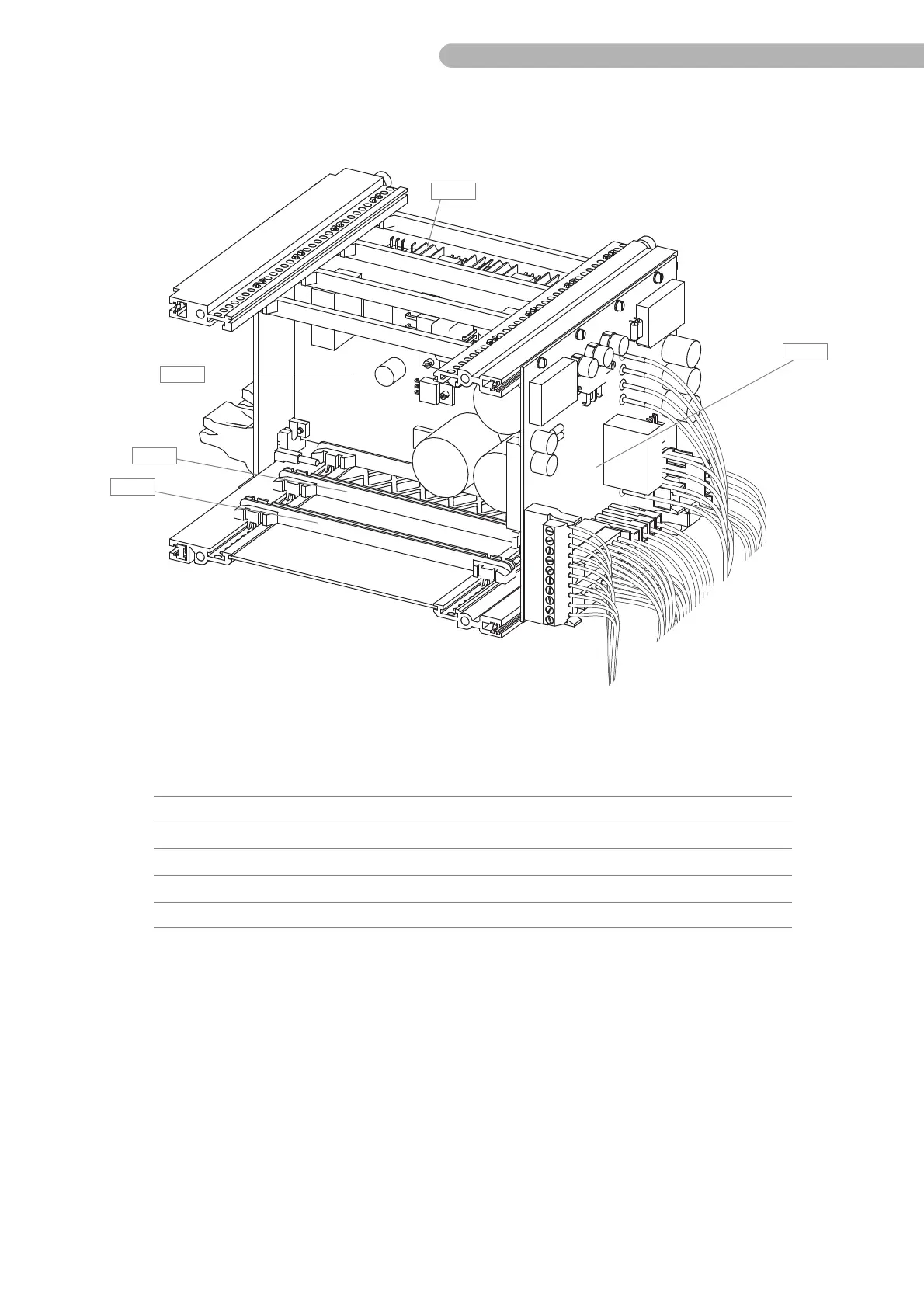

fig. 7: Overview of card and module support assembly
C 2
C 1
C 3
C 4
C 5
Mod. Item Description Number SP number
C1Battery monitoring circuit board ZAU 2002 90-305-210
C2Mains monitoring circuit board ZNU 2003 90-305-220
C3Slot for sensor module
C4Slot for sensor module
C5Backplane circuit board ZBP 2004 - factory repair only -
