SCPC System • System description
26 CP_SEM_60-03-00.002
Battery monitoring (ZAU 2002) circuit board

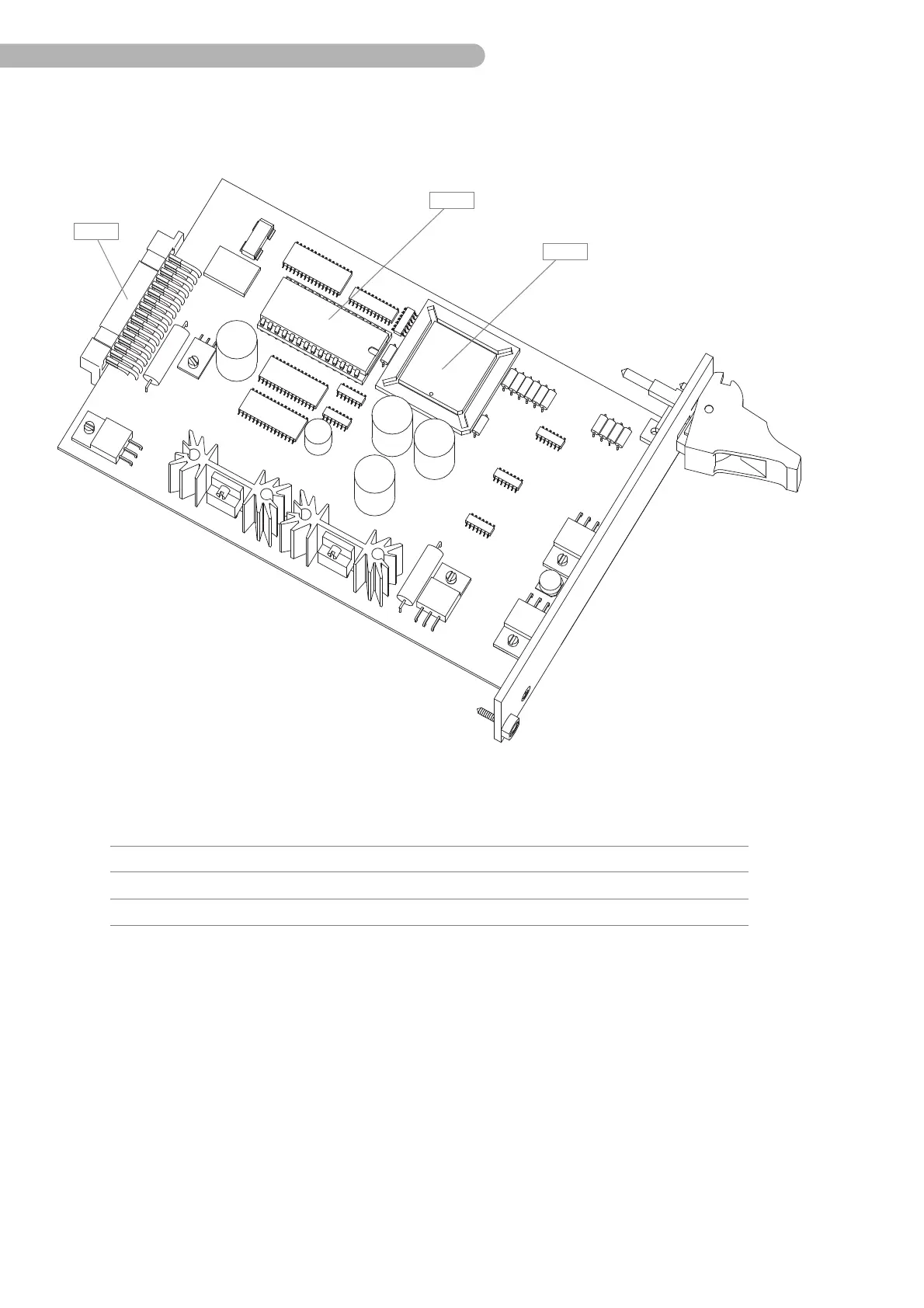

fig. 9: Overview of battery monitoring (ZAU 2002) circuit board
Additional information on the EPROM ZAU
With EPROMs < V1.3 the charge function of the SCPC batteries is interrupted when the speed of the
pump exceeds 3200 RPM and there is no Electrical Remote-Controlled Tubing Clamp connected. This
feature was originally intended for the use with the JMS-SCP as the lower volume of the JMS disposable
requires a higher speed for the same flow rate than with a Revolution
®
- based SCP. The interruption
was intended for cases when an Electrical Remote-Controlled Tubing Clamp was connected.
As of EPROM V1.3 the charge cycle is interrupted when the pump speed exceeds 3200 RPM and there is
an Electrical Remote-Controlled Tubing Clamp connected to the system.
Mod. Item Description Number SP number
C25Connection for backplane circuit board CON 2
C26EPROM (firmware) ZAU IC 6 93-484-234
C27CPU 80C196KC IC 1
