SCPC System • System description
20 CP_SEM_60-03-00.002
3.2.4 Touch screen module

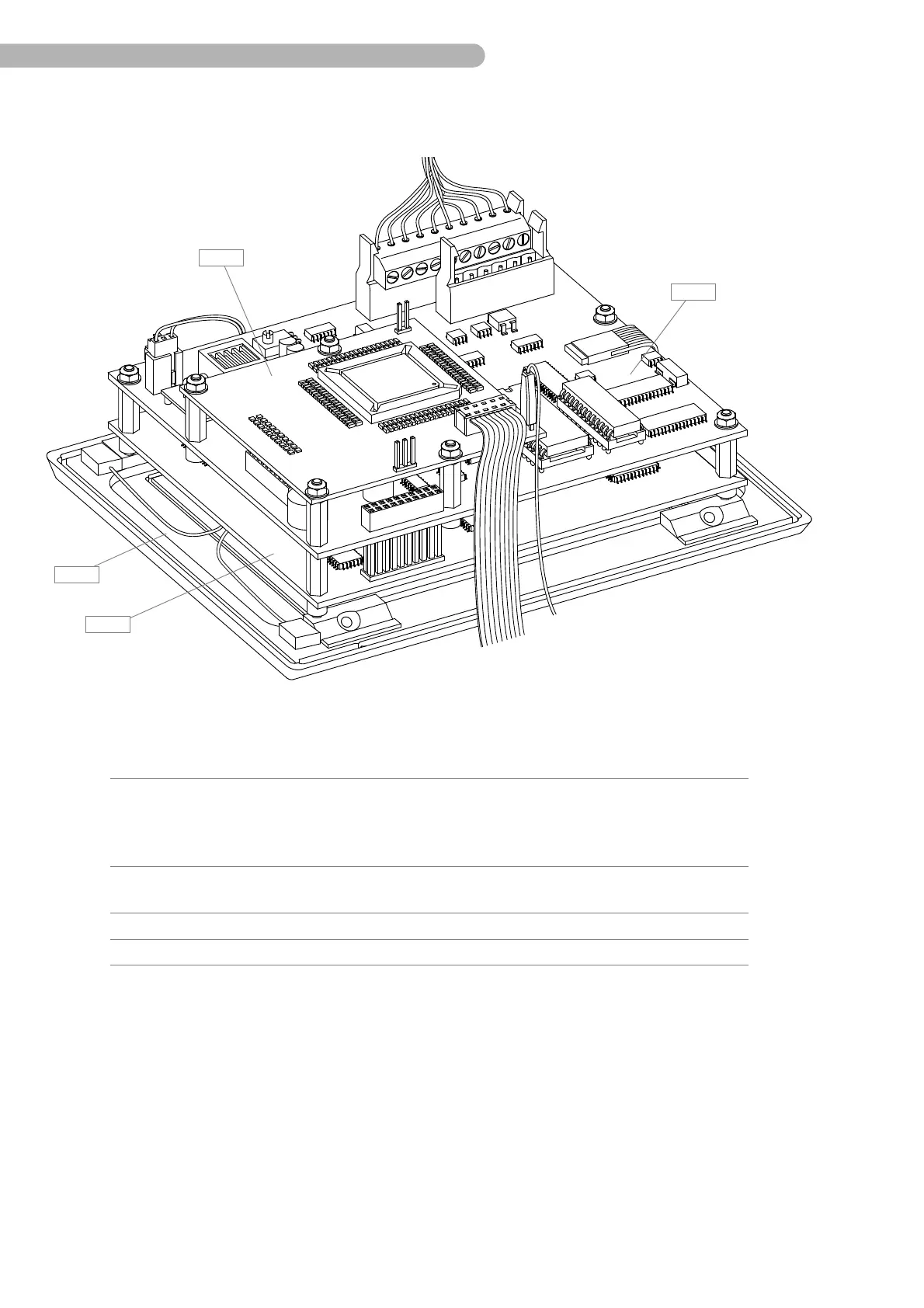

fig. 4: Overview of the touch screen module
B 1
B 2
B 3
B 4
Mod. Item Description Number SP number
B1SCPC Front panel, complete
(set includes assembly frame, touch screen,
Display circuit board, ZDS 2006, ZIS 0202,
EMC sealing cords, assembly material)
60-03-10
B2Display circuit board (fixed component of the
touch screen, can only be replaced as a unit)
B3CPU circuit board (ZDS) ZDS 2006 90-305-250
B4Interface circuit board (ZIS) ZIS 0202 90-305-300
