SCPC System • Replacing components
CP_SEM_60-03-00.002 61
6.7 Fan
Before disassembling the fan, the following components need to be removed:
➜ Side panel (see page 6.52)
➜ the holder for the discharge resistor (see page 6.60) and
➜ the entire card and module support assembly (along with the Backplanecircuit board)
6.7.1 Removing the fan

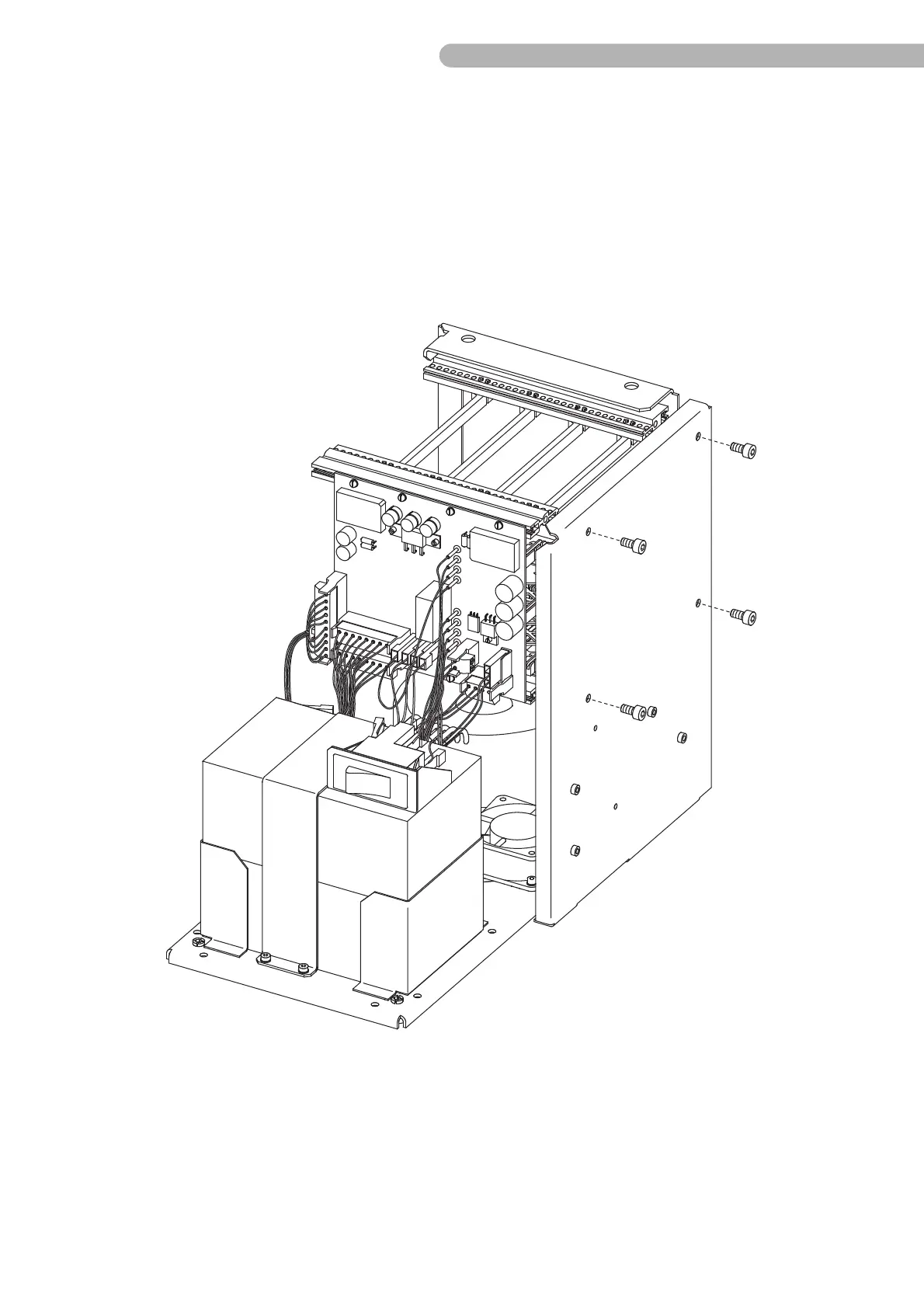

fig. 32: Dismounting the card-/ module carrier group
◗ Remove the four indicated screws (Allen, size 4) from the side panel.
