SCPC System • Replacing components
CP_SEM_60-03-00.002 65
6.8.2 Removing the CPU board (ZDS 2006)

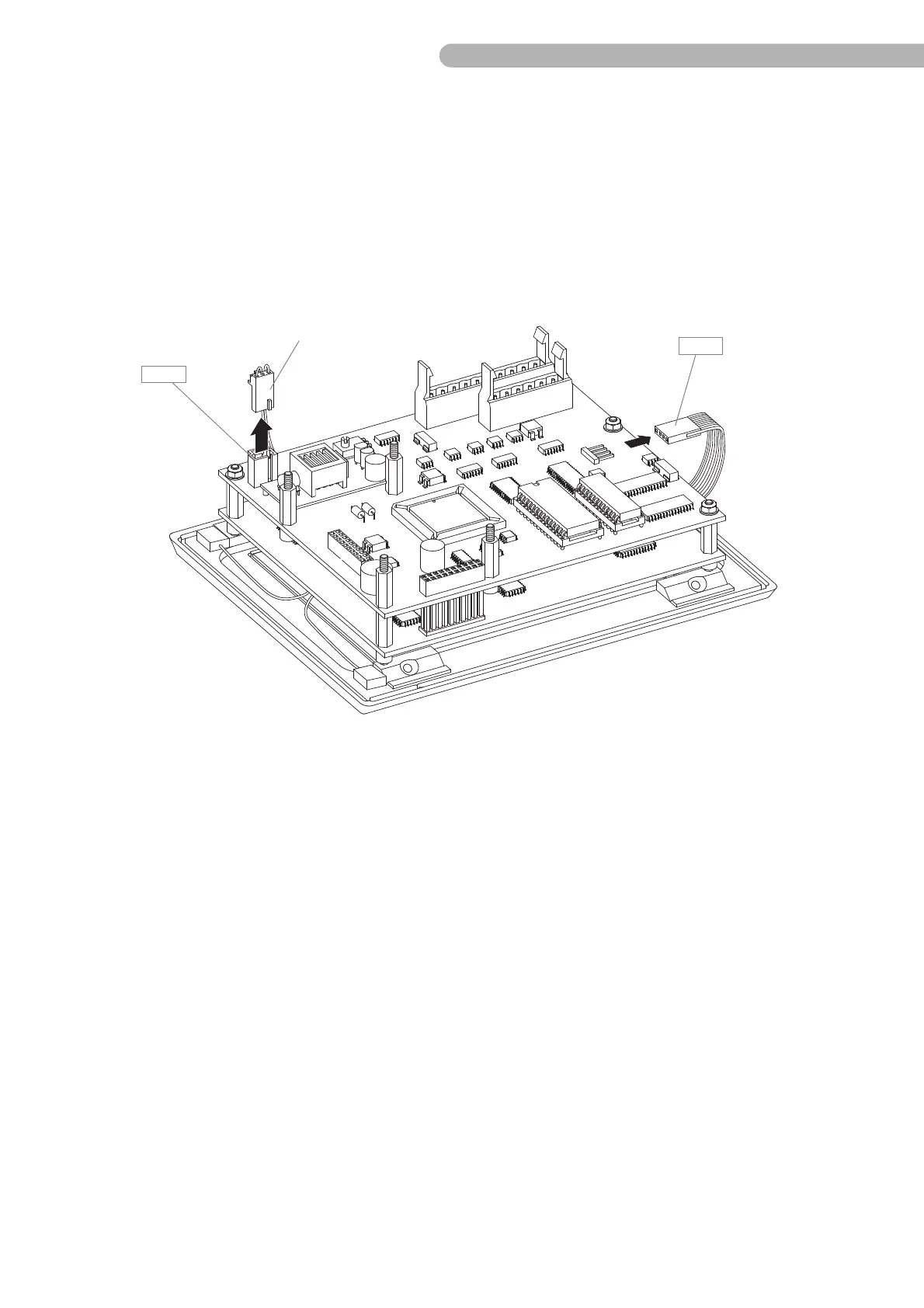

fig. 36: Removing the CPU board (1)
◗ Remove connectors B 8 (display) and B 10 (lighting). Take care not to bend the membrane contacts
on connector B 8 (display) as otherwise the contact paths may break.
B 10
B 8
