7.3. Position
Top-cut position
Only for CNC lathe type

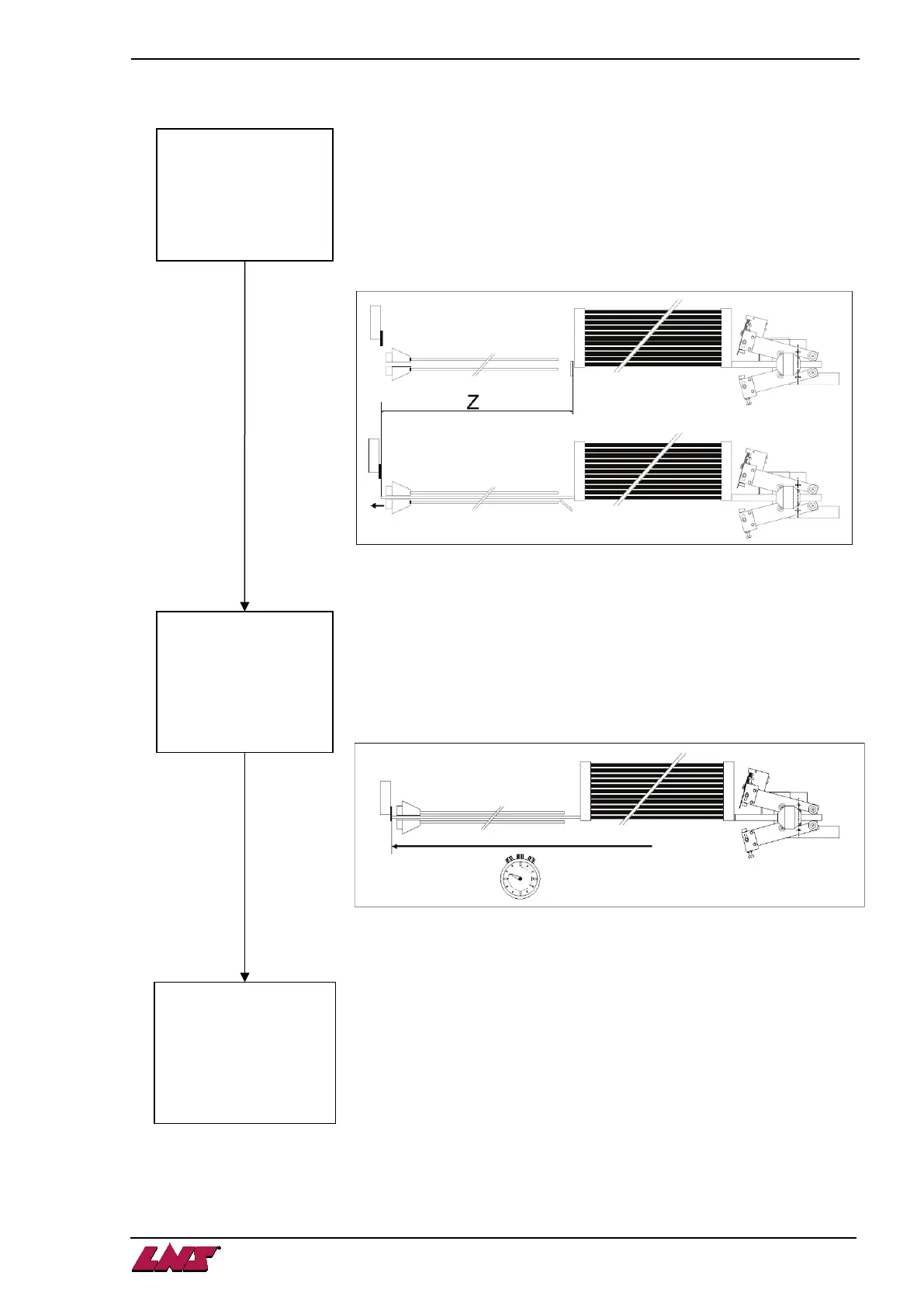

During the loading cycle, the bar is automatically loaded and positioned into
the spindle, outside the clamping device of the lathe (chuck or actuator).
This positioning corresponds to a value (Z) programmed by the operator,
which is equal to the distance between the measuring cell and the position
of the material in the lathe clamping device.
With this system, the setting is the same for any bar length.
Time for loading a new bar and top cut positioning
Only for CAM lathe type
During the loading cycle, the bar is automatically loaded and positioned into
the spindle, outside the clamping device of the lathe (chuck or actuator).
This positioning corresponds to a value (T) programmed by the operator,
which is equal to the loading time of the material in the lathe clamping
device.
Alarm during headstock reverse with collet open
(only for lathe with mobile headstock)
This parameter allow to enable/disable the alarm.
When the headstock moves forward with open collet, this parameter ensure
that the bar stock position doesn’t change.
For example if the collet stick to the bar stock.
TIME FOR LOADING A
NEW BAR AND TOP CUT
POSITIONING
[@@] SEC.
ESC ENTER
TOP-CUT POSITION
[@@@@]MM
ESC ENTER
ALARM DURING
HEADSTOCK REVERSE
WITH COLLET OPEN :
[@]
1: NO
2: YES
ESC ENTER
