13A-4
FUEL SUPPLY
Injector rail - Injectors
K7M, and 710
13A
REMOVAL
Disconnect the battery, starting with the negative ter-
minal.

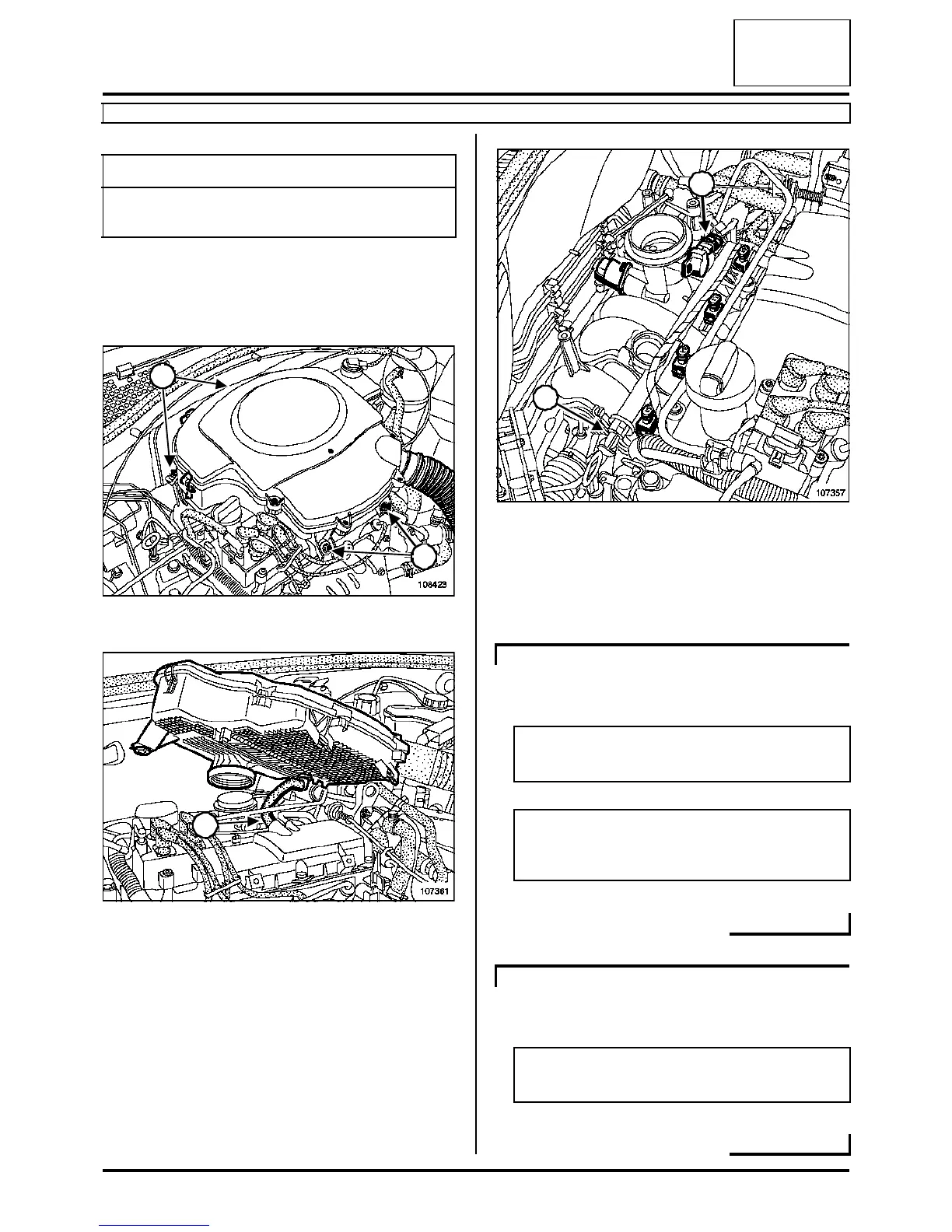

Remove the air filter box (1) mounting bolts.
Disconnect:
-the oil vapour rebreather pipes (2),
-the air inlet sleeve.
Remove the air filter box.
Disconnect:
- the injector connectors,
- the throttle position sensor connector (3).
Disconnect the fuel inlet pipe (4) on theinjection rail.
Disconnect the fuel inlet pipe (4) on theinjection rail.
Tightening torquesm
injection rail mounting
bolts
0.7 daNm
108423
107361
1
1
2
107357
DIRECTION MANUELLE
IMPORTANT
Wear gloves during the operation.
WARNING
Before the operation, protect the alternator with
plastic bags.
DIRECTION ASSISTEE
IMPORTANT
Wear gloves during the operation.
4
3
