ENGINE AND LOWER ENGINE ASSEMBLY

Engine/gearbox assembly

L90, and K7J, and 710

10A

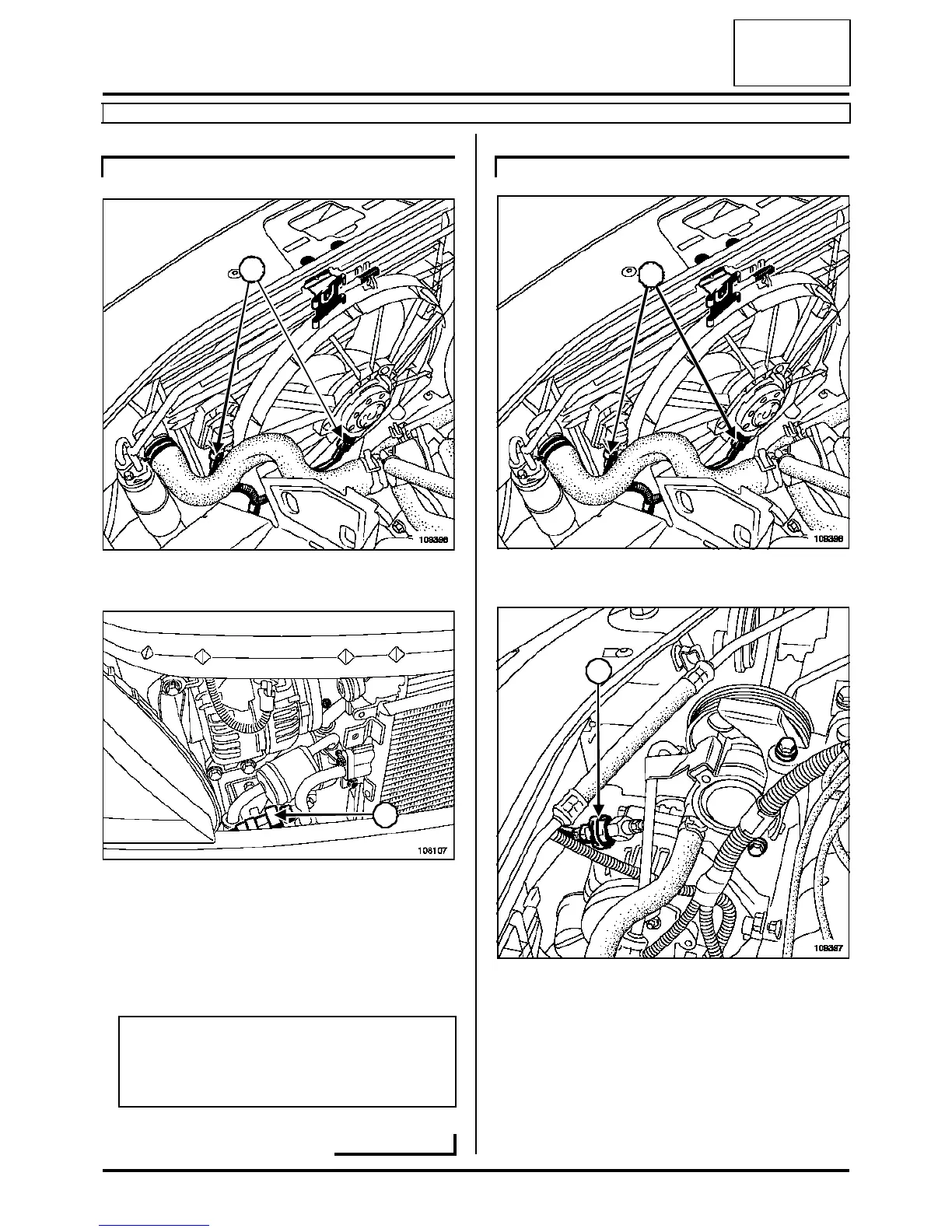

Disconnect fan assembly connectors (12).

Disconnect connector (13) from the refrigerant pres-

sure sensor.

Drain the air conditioning circuit using filling station.

Disconnect the air conditioning pipe unions on the air

conditioning compressor.

Disconnect connectors (14) of the fan assembly.

Disconnect connector (15) of the power assisted

steering pressure switch.

DIRECTION MANUELLE, and AIR CONDITIONING

109396

108107

WARNING

Protective plugs must be inserted into the pipe

and air conditioning compressor openings to pre-

vent moisture from getting into the circuit.

DIRECTION ASSISTEE, and AIR CONDITIONING

109396

109397
