10A-10
ENGINE AND LOWER ENGINE ASSEMBLY
Engine/gearbox assembly
L90, and K7J, and 710
10A

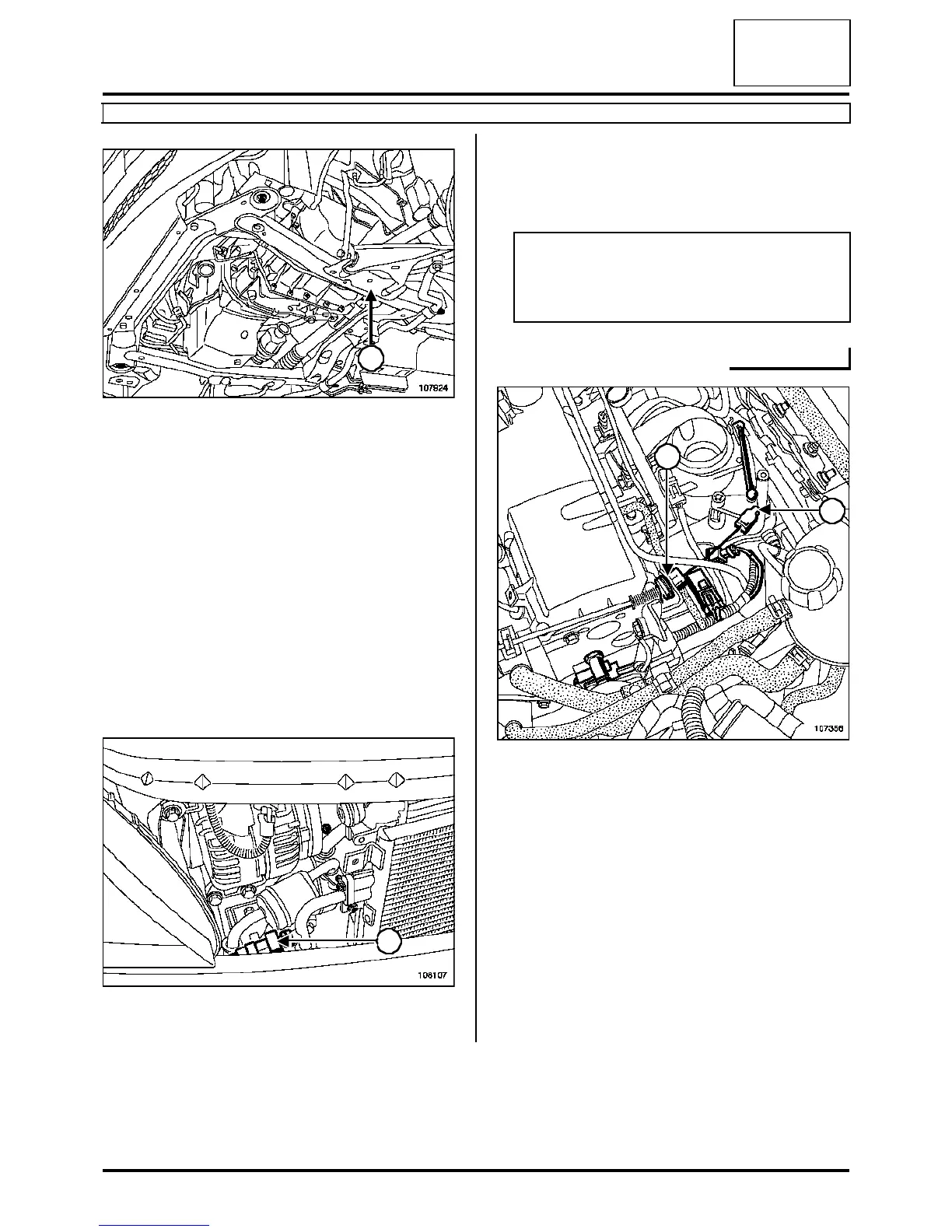

Remove the power assisted steering pipe mounting
bolts:
- from the top of sub-frame (16),
- on the multifunction support,
- on the rear of the cylinder block.
Disconnect:
-the low pressure hose on the power assisted stee-
ring pump and drain the circuit,
-the high-pressure pipe from the power assisted
steering pump,
-the high-pressure pipe from the steering rack.
Remove the power assisted steering high-pressure
pipe.
Disconnect connector (17) of the refrigerant pressu-
re sensor.
Drain the air conditioning circuit using the filling sta-
tion.
Disconnect the air conditioning pipe unions on the air
conditioning compressor.
Disconnect:
- ball joint (18) of the throttle valve control cable,
-cable sleeve stop (19) of the throttle valve control
cable.
107924
108107
16
17
WARNING
Protective plugs must be inserted into the pipe
and air conditioning compressor openings to pre-
vent moisture from getting into the circuit.
107356
19
18
