Logan X90 - Page 143

16A-11
STARTING - LOAD
Alternator
K7M, and 710, and DIRECTION ASSISTEE, and AIR CONDITIONING
16A

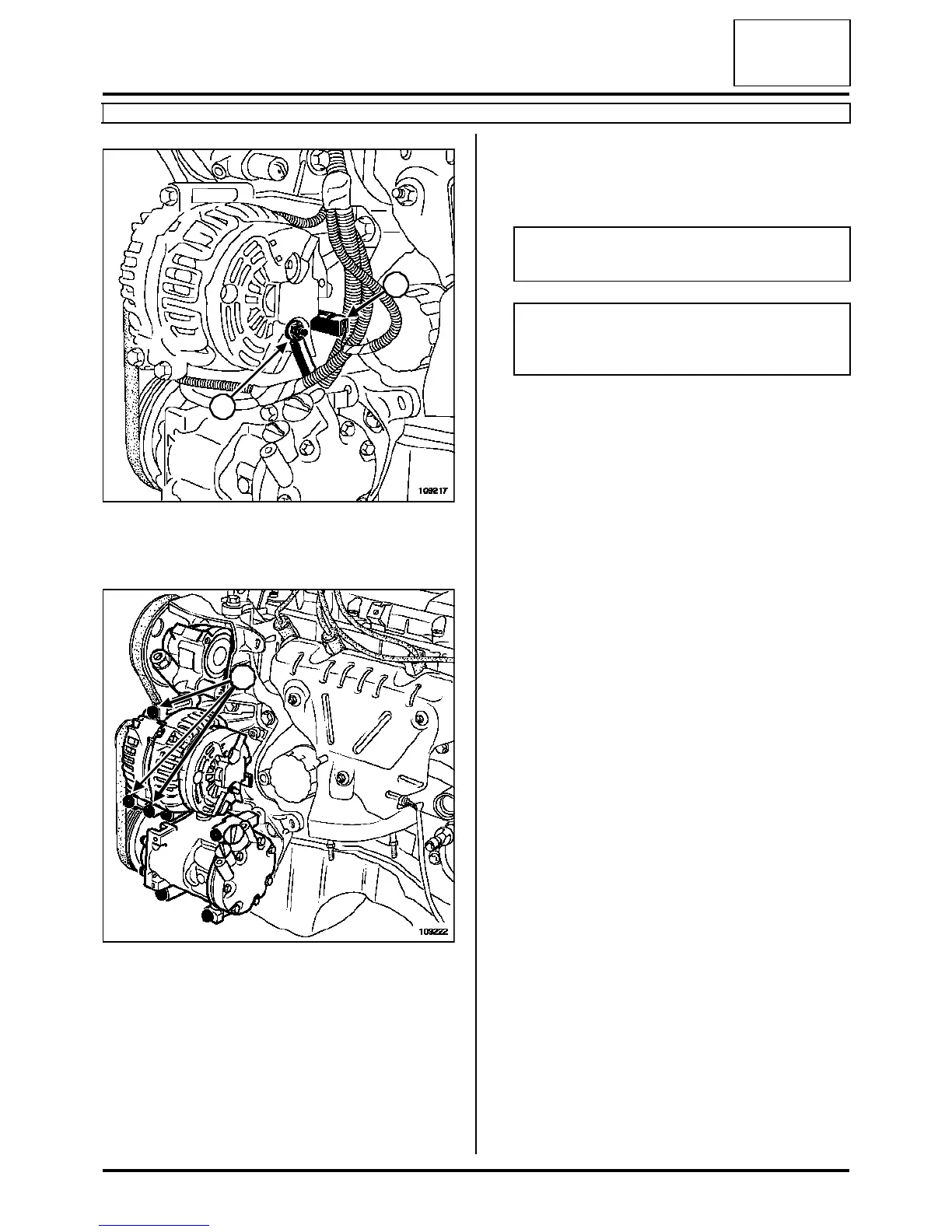

Remove lead (5) from the alternator.
Disconnect the connector (4).
Remove:
-the air conditioning compressor mounting bolts ,
-the air conditioning compressor from the multifunc-
tion support (without opening the circuit).
Place the air conditioning compressor on the sub-
frame.
Remove:
-the alternator mounting bolts (6),
- the alternator.
REFITTING
Refit the alternator.
Tighten to torque the alternator mounting bolts
(2.1 daNm).
Proceed in the reverse order to removal.
Torque tighten:
- the air conditioning compressor mounting bolts
(2.1 daNm),
- the power assisted steering pump mounting
bolts (2.1 daNm),
Refit:
- the accessories belt (see 11A, Top and front of
engine, Accessories belt),
- the front bumper (see 55A, Exterior protection,
Front bumper).
109217
109222
4
5
66
WARNING
Replace any belt that has been removed.
WARNING
When replacing the belt, be sure to replace the
tension wheels and idler pulleys.
