ENGINE AND LOWER ENGINE ASSEMBLY
Engine/gearbox assembly
L90, and K7M, and 710
10A

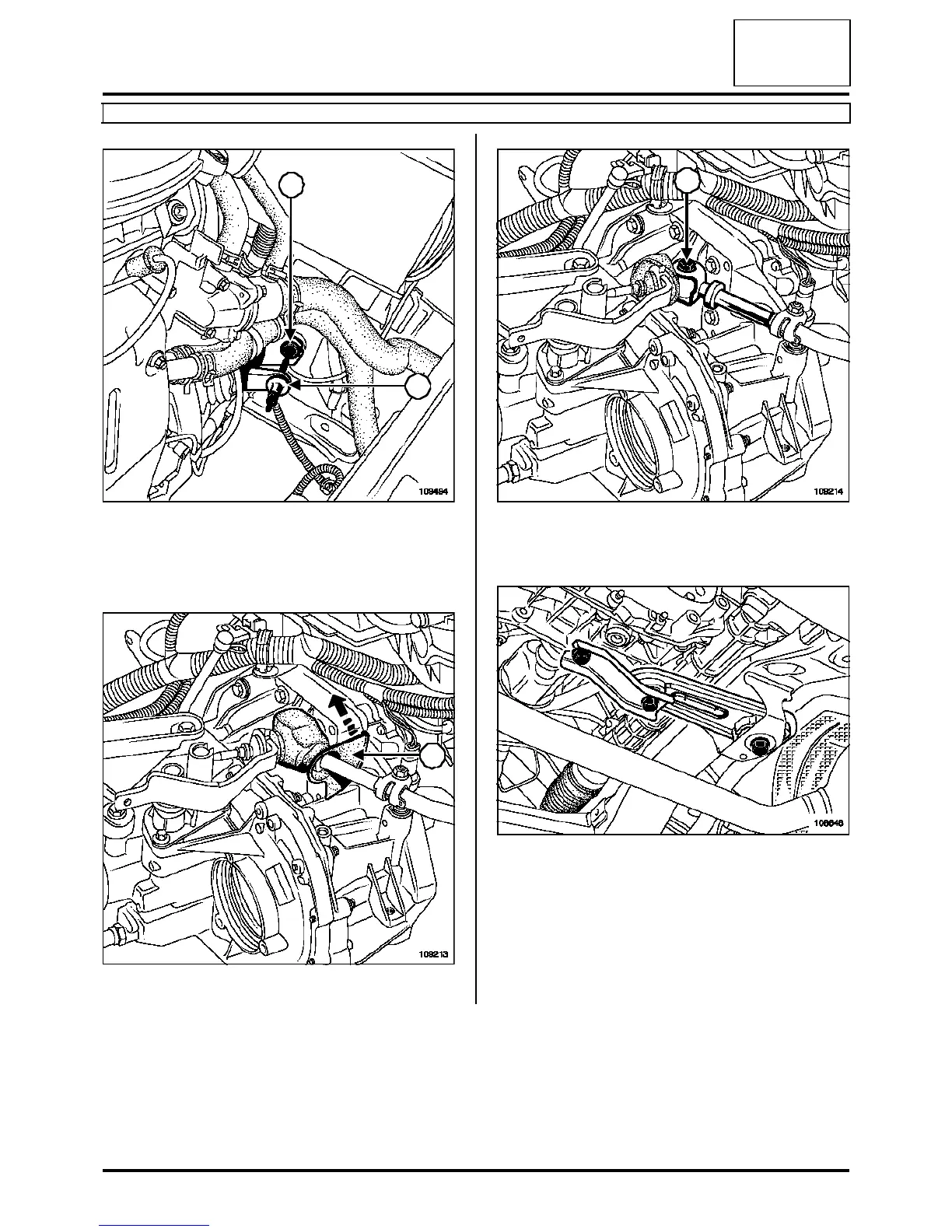

Remove:
-the clutch control cable from clutch fork (29),
-the clutch control cable from sleeve stop (30).
Remove rubber protection (31) from the gear lever.
Remove mounting bolt (32) from the gear lever fork.
Attach the gearbox control linkage to the body.
Remove the engine tie-bar.
Remove the catalytic converter (see 19B, Exhaust,
Catalytic converter).
