10A-27
ENGINE AND LOWER ENGINE ASSEMBLY
Engine/gearbox assembly
L90, and K7M, and 710
10A

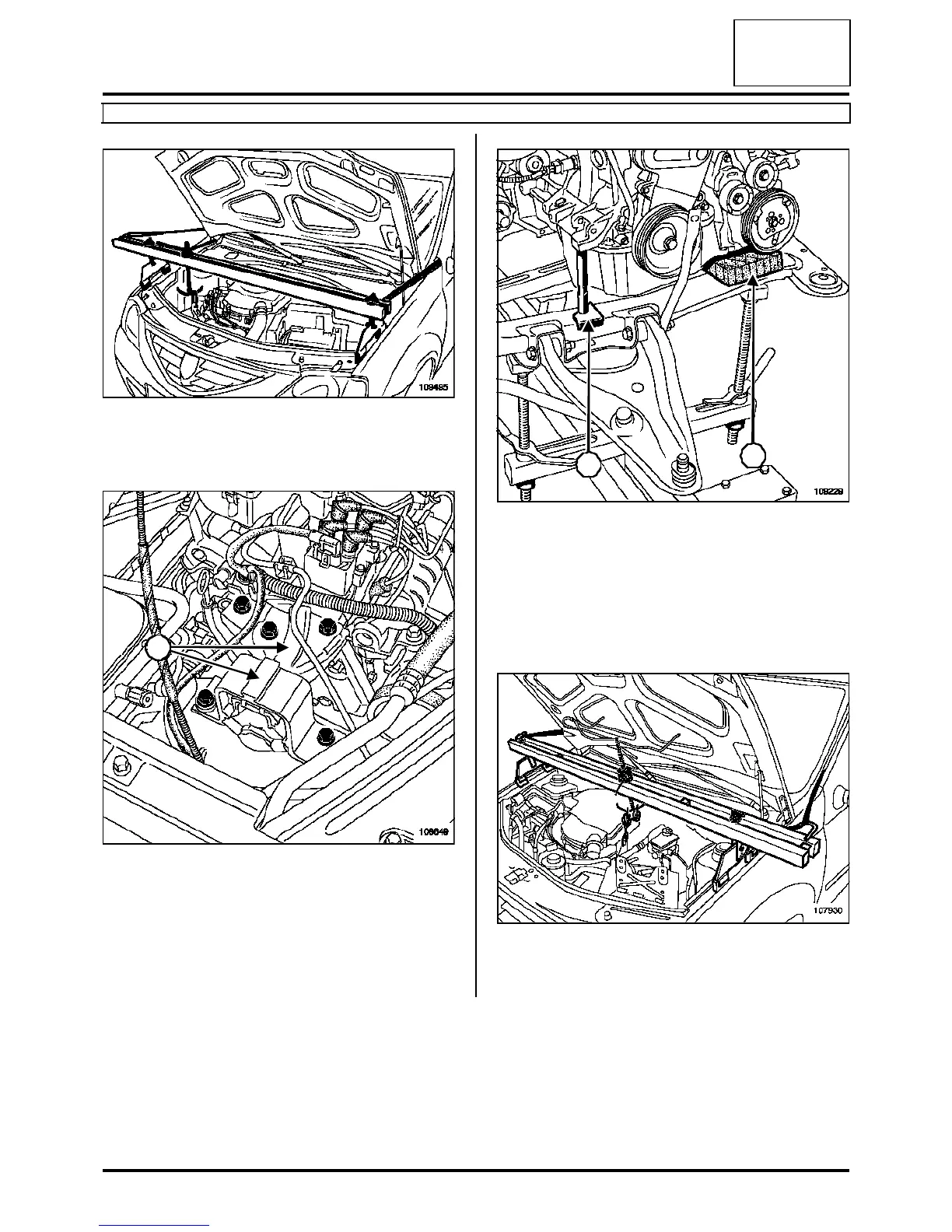

Fit engine support tool (Mot. 1453) with the retaining
belt, by taking the timing end lifting eye as an ancho-
ring point.
Remove:
-the suspended engine mounting cover mounting
bolts,
-the suspended mounting from engine (33).
Put a shim under the engine on the right-hand side
of the sub-frame:
- put a rubber shim under multifunction support (34),
- fit tool (Mot. 1159-03) to the rear of the engine (35),
-lower the engine to fix it in place on the right-hand
side of the sub-frame.
Fit engine support tool (Mot. 1453) with the retaining
belt, by taking the flywheel end lifting eye as an an-
choring point.
109495
108649
33
109229
107930
35
34
