REMOVAL
Place the vehicle on a two-post lift.
Remove:
-the engine undertray,
-the bumper mounting bolts under the sub-frame.
Drain the engine oil.
Remove:
- the engine tie-bar,
- the front wheels,
- the lower ball joints,
- the catalytic converter (see 19B, Exhaust, Cataly-
tic converter),
- the two mounting bolts from the steering rack.
Attach the steering rack to the body.

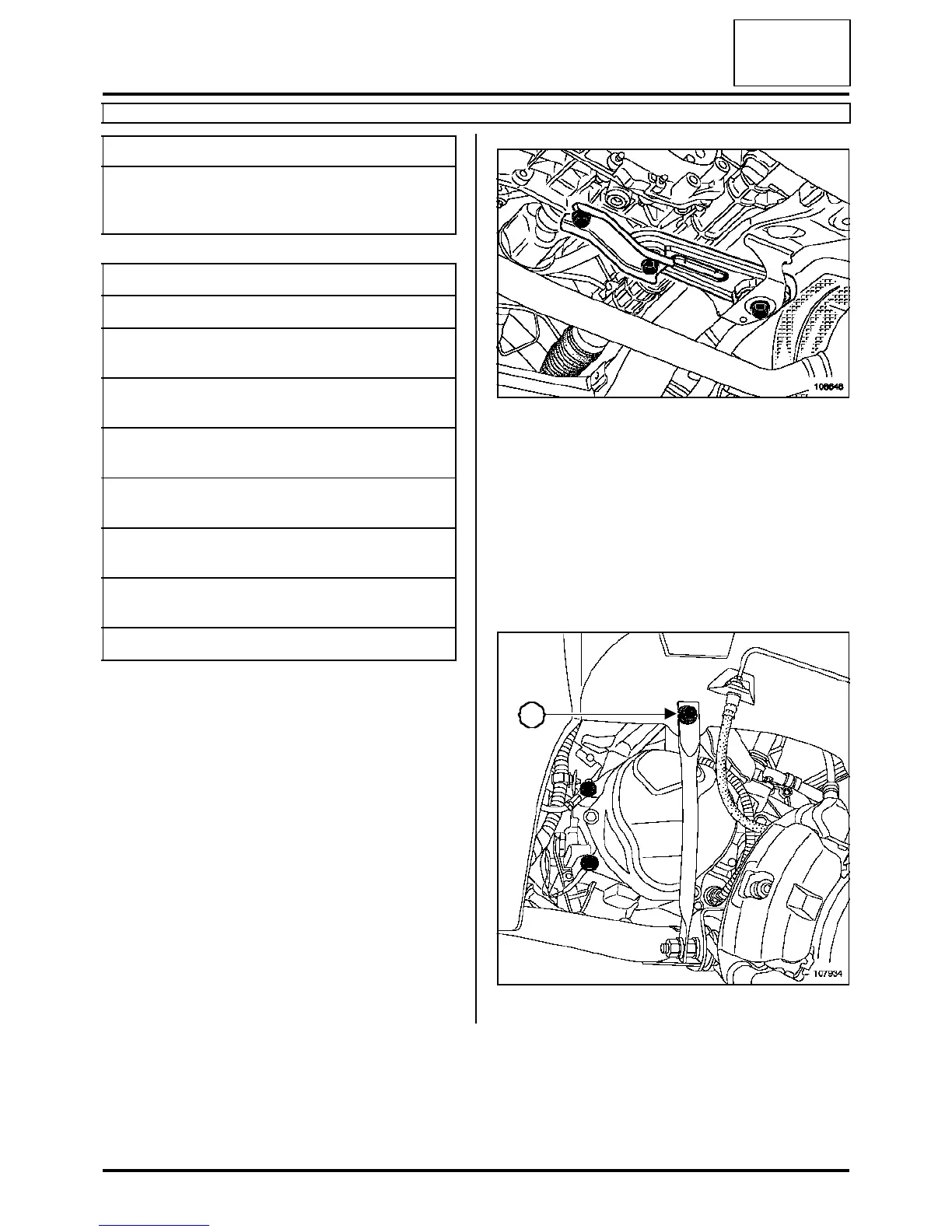

Remove mounting bolt (2) of the sub-frame tie-rods.
Essential special tooling
Tav. 1747 Threaded rods for
removing the sub-
frame
Tightening torquesm
sump mounting bolts 1.4 daNm
engine to gearbox cou-
pling bolts
4.4 daNm
sub-frame mounting
bolts
(10.5 daNm)
steering rack mounting
bolts
10.5 daNm
sub-frame tie-rod upper
mounting bolts
2.1 daNm
sub-frame tie-rod lower
mounting bolts
6.2 daNm
engine tie-bar mounting
bolts
10.5 daNm
wheel bolts 10.5 daNm
