Sump
L90, and K7J, and 710
10A

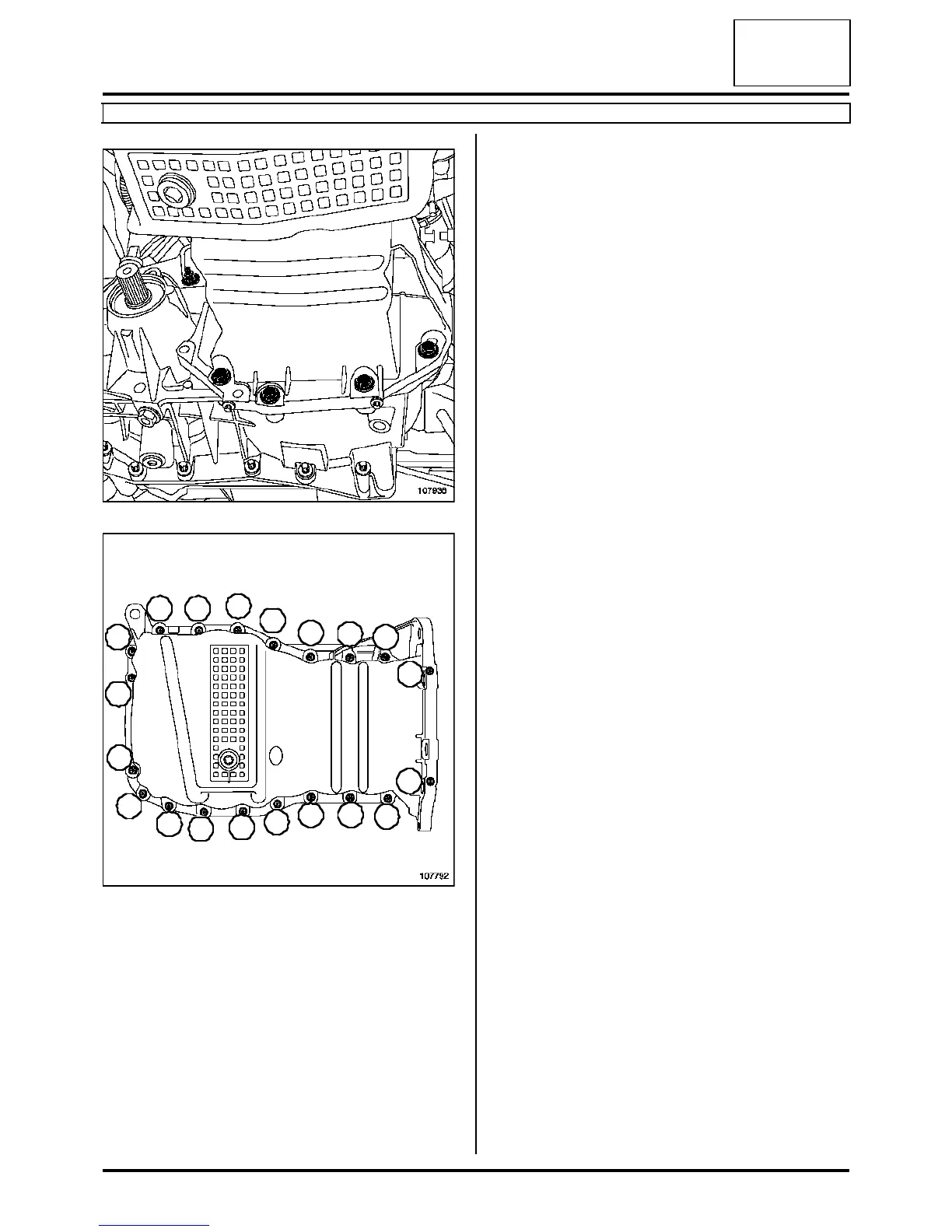

Pretighten to torque and in order:
-the sump mounting bolts (0.8 daNm),
-the engine to gearbox coupling bolts (0.8
daNm).
Torque tighten in order:
-the sump mounting bolts (1.4 daNm),
-the engine to gearbox coupling bolts (4.4
daNm).
Torque tighten:
-the sub-frame mounting bolts ((10.5 daNm)),
- the steering rack mounting bolts (10.5 daNm),
-the sub-frame tie-rod upper mounting bolts (2.1
daNm),
-the sub-frame tie-rod lower mounting bolts (6.2
daNm),
- the engine tie-bar mounting bolts (10.5 daNm),
- the wheel bolts (10.5 daNm).
Refit the catalytic converter (see 19B, Exhaust, Ca-
talytic converter).
Proceed in the reverse order to removal.
Top up the engine oil.
