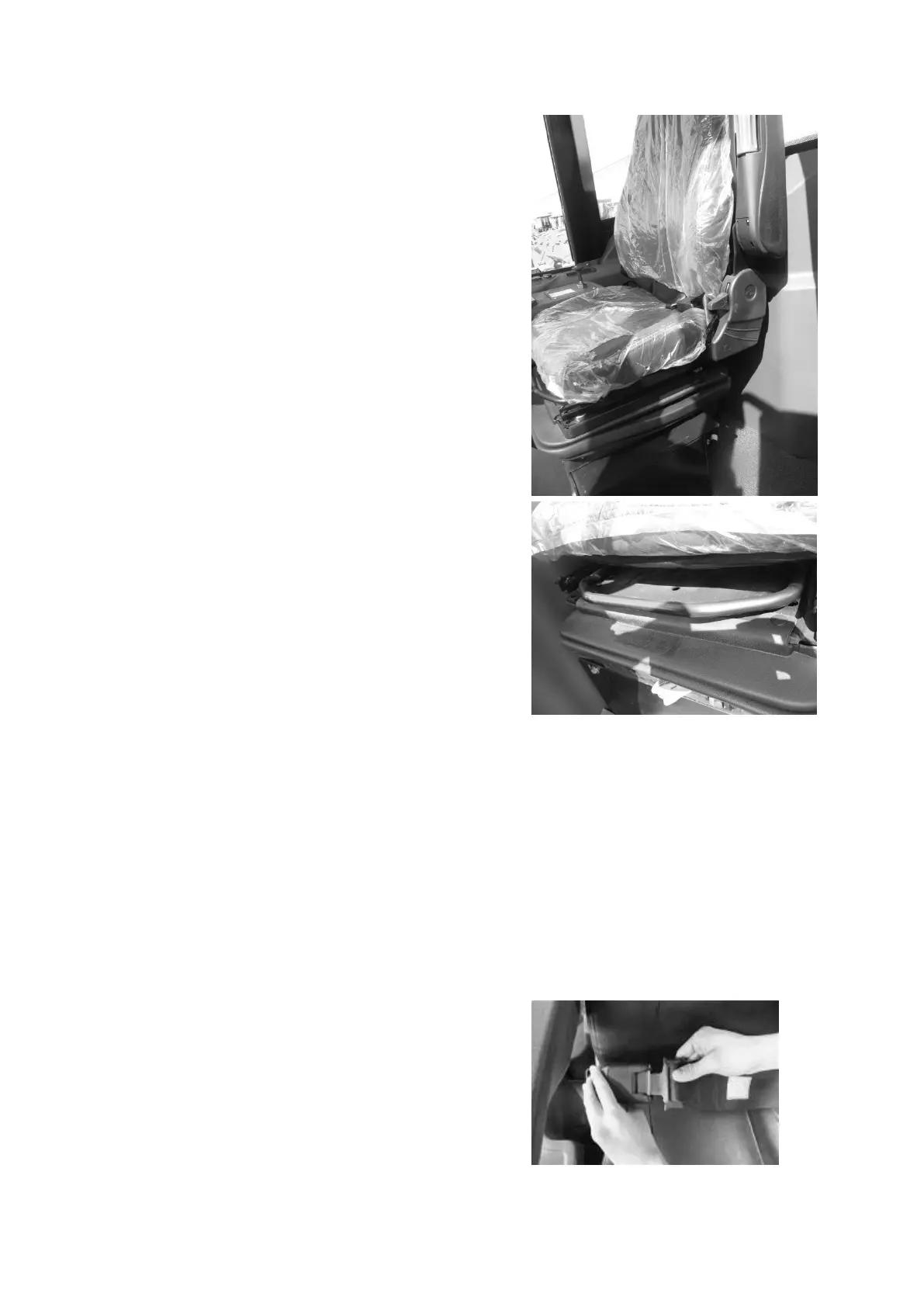

The loader is provided with a safety belt. The operator should fasten the safety belt when
operating the loader, but he should first inspect the safety belt for worn or loose part. If
necessary, replace the safety belt.
Adjustment
Adjustment
Adjustment
Adjustment to
to
to
to backrest
backrest
backrest
backrest angle
angle
angle
angle
A
handle is provided in the lower left portion of
seat. Turning clockwise the handle can press the
backrest forward or backward to expected
position. Release the handle, the backrest will
remain at that position. The backrest can be
adjusted at most 12.5 ° forward and at most 15 °
backward.
Height
Height
Height
Height adjustment
adjustment
adjustment
adjustment of
of
of
of seat
seat
seat
seat headrest
headrest
headrest
headrest
Hold the seat headrest with both hands and pull
up or press down the headrest steadily and
forcefully to adjust the height of seat headrest.
Adjustment
Adjustment
Adjustment
Adjustment to
to
to
to seat
seat
seat
seat flexibility
flexibility
flexibility
flexibility (rigidity
(rigidity
(rigidity
(rigidity
adjustment)
adjustment)
adjustment)
adjustment)
A
weight adjusting handle is provided in the lower
front portion of seat. This weight adjusting handle
is used to adjust the flexibility to meet operator
need. The weight adjusting handle can be turned
clockwise or counterclockwise. There is a weight
indi cate or near the handle. By turning the weight
adjusting handle, the weight indicator will indicate
a different value, meaning the most suitable
weight of operator relative to the current seat
rigidity. The seat flexibility can be steplessly
adjusted from 50kg to 130kg, and the rigidity set
by the loader manufacturer is 70kg.
Before using the safety belt, adjust its length to
ensure the good functioning and comfort of
safety belt. The length of safety belt can be
adjusted by moving the position of buckle in
safety belt. The anchorage of safety belt is
arranged in the rear righ t portion of seat. Insert
the buckle into the opening of anchorage. The
