PyroTec™ PRO Hardw are User’s Manual, V1.2 100
RT-MN024-1.2 02/21

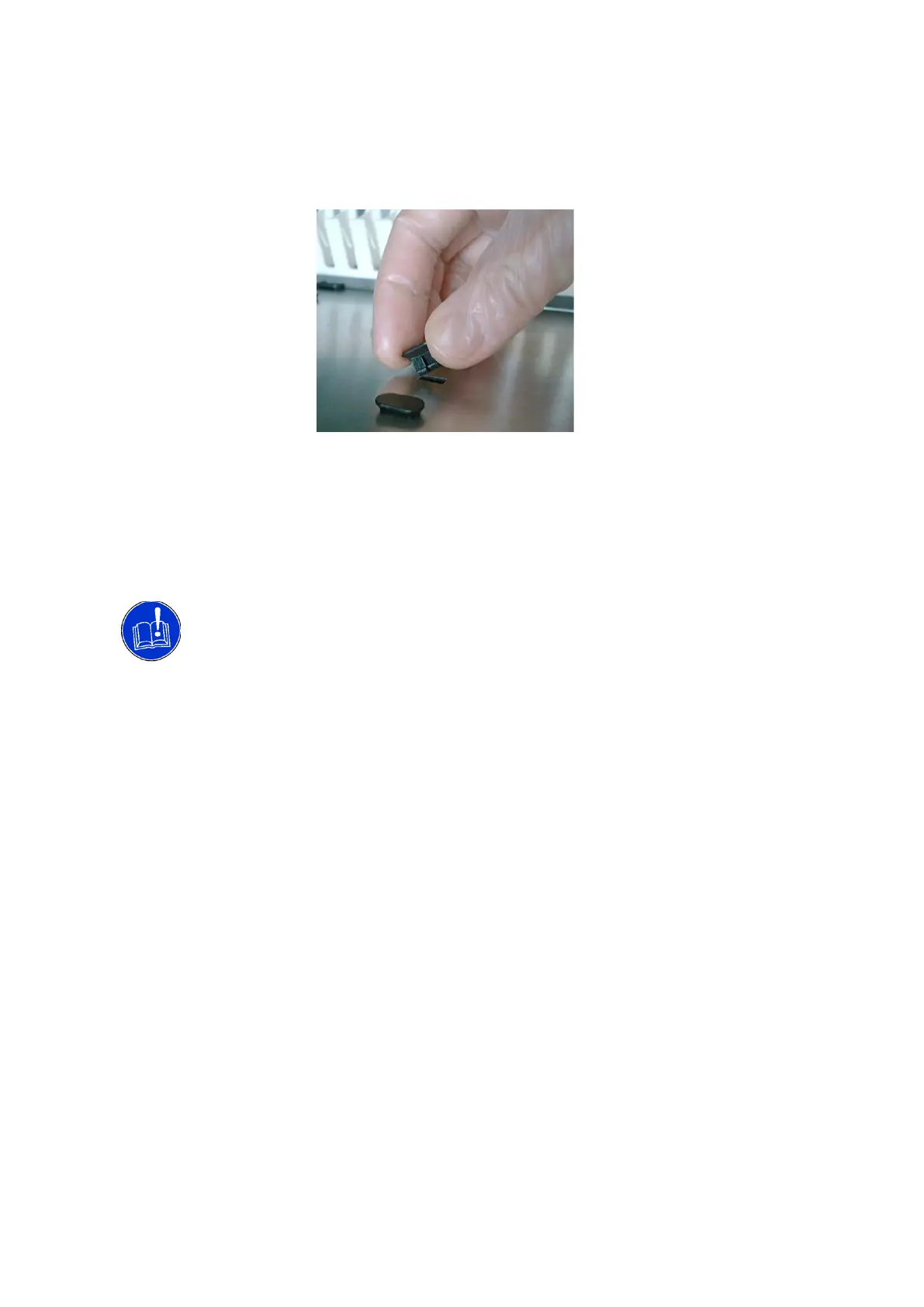

Inserting a positioning pin
Carefully press the new pin into the
hole on the worktable.
You can use a small rubber mallet if
the pin cannot be inserted manually.
Note: When replacing positioning pins, take note to the following:
• Make sure to only replace a pin by one of exactly the same type and pay attention to
the orientation.
• Do not leave uncovered grid holes on the worktable as liquids might flow into the area
below the worktable.
Loose positioning pins can result in bad positioning of carriers and labware.
• It is recommended that you replace removed positioning pins with new ones.
