PyroTec™ PRO Hardw are User’s Manual, V1.2 43
RT-MN024-1.2 02/21
5.3.4 Safety Elements
Panel
The front safety panel is secured in closed position with the door locks. Two gas springs fa-
cilitate the opening of the panel.
Safety Panel
The standard front safety panel has the following function:
• Restrict access to moving parts (moving parts, mechanical hazards)
• Protection from spilling sample or reagent

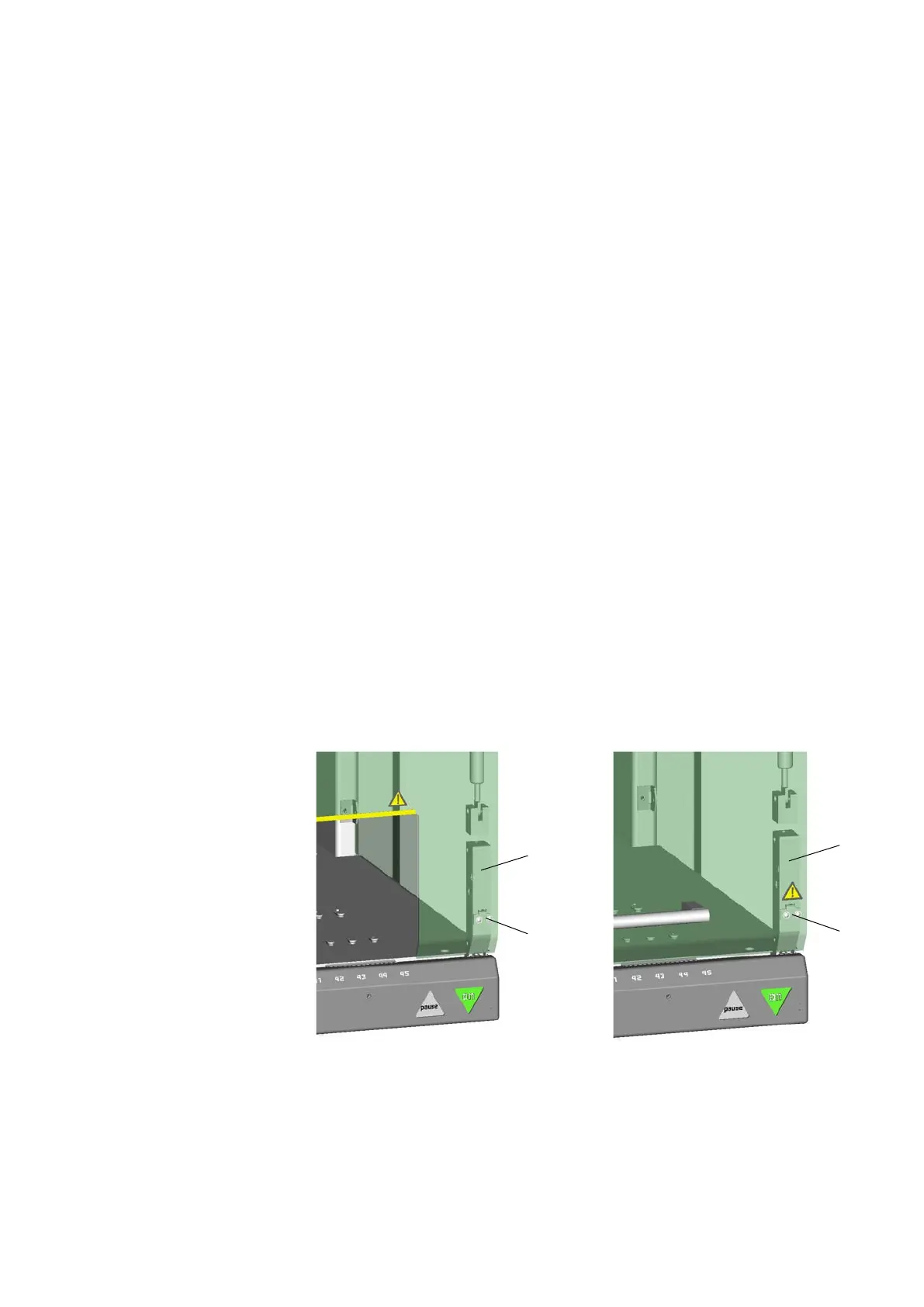

Safety Panel
Front Safety Panel With Adjustable Access Window (Option)
The front safety panel with adjustable access window has the following functions:
• Prevent direct access to moving parts (moving parts, mechanical hazards)
• Protection from spilling sample or reagent
Door Locks
Work?
The door locks actively lock the front safety panel during operation of the PyroTec™ PRO.
This is achieved with a software command from the application software.
Software
The application software is programmed in such a way that
• If the safety panel is open, the process cannot be started.
• The door locks can only be unlocked when the process is stopped or in pause mode.
The figure shows the door locks in connection with the standard and closed safety panel:
The door locks consist of a locking device (A) with an electromagnetic actuator on each
side of the worktable and a catch (B), which is mounted to the safety panel. A switch in the
locking device monitors if the safety panel is open or closed.
