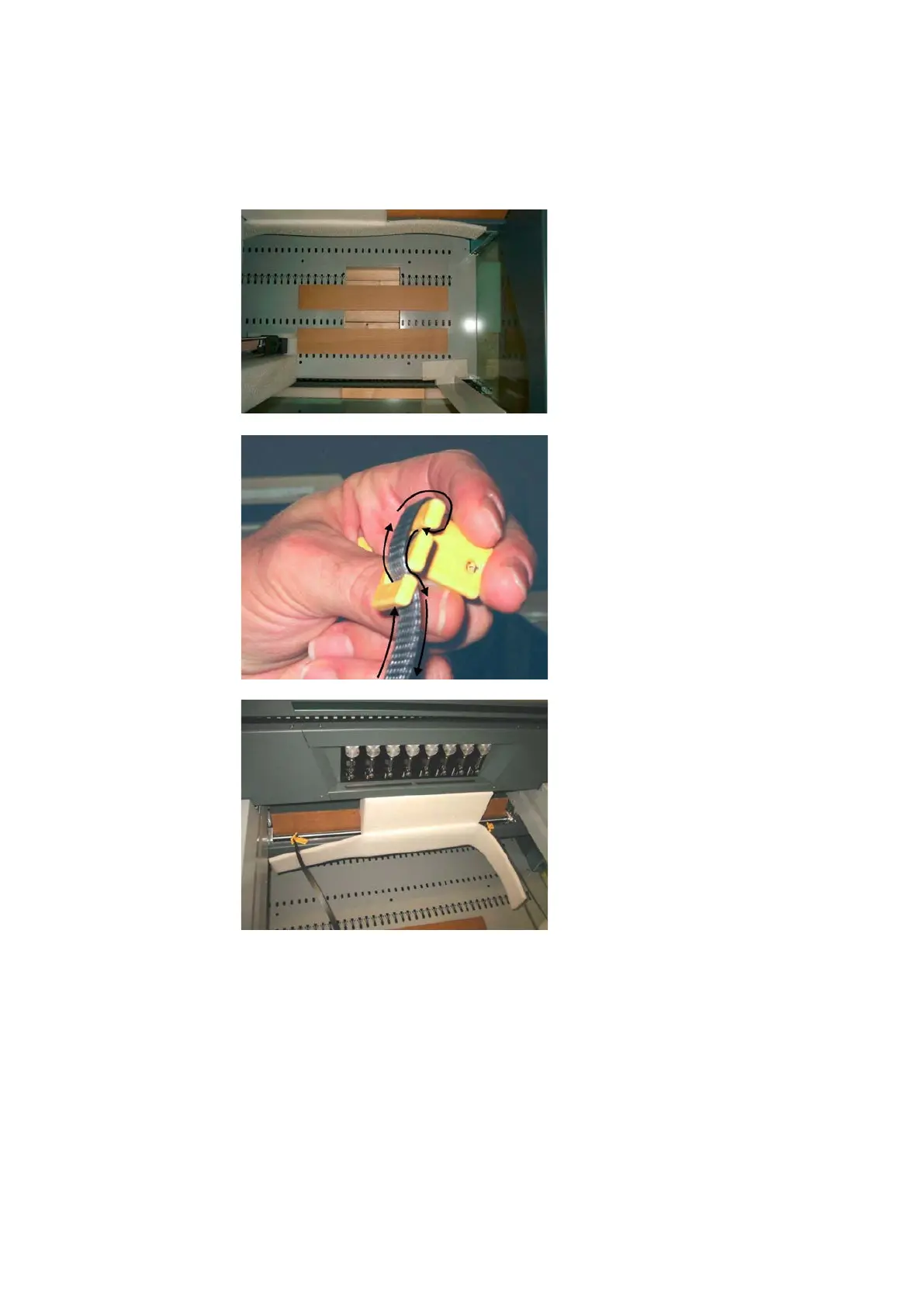

• Place the two cardboard strips (A) onto
the worktable to prevent it from being
scratched by the accessory box.
Accessory
Box
• Prepare the packaging strap as follows:
o Cut two pieces of packaging
strap to a length of approx. 1m
(40 in.).
o Insert one side of the straps in
the brackets as shown in the
figure.
o Engage the brackets (A) at the
X-bay as shown in the figure.
Place the bracket in the correct
position, since the paint of the
instruments surface may be
scratched when the bracket
slides along the X-bay.
