Vor der Inbetriebnahme
- 15 -10.13
42
40
41
39 38
25
17
43
7
44

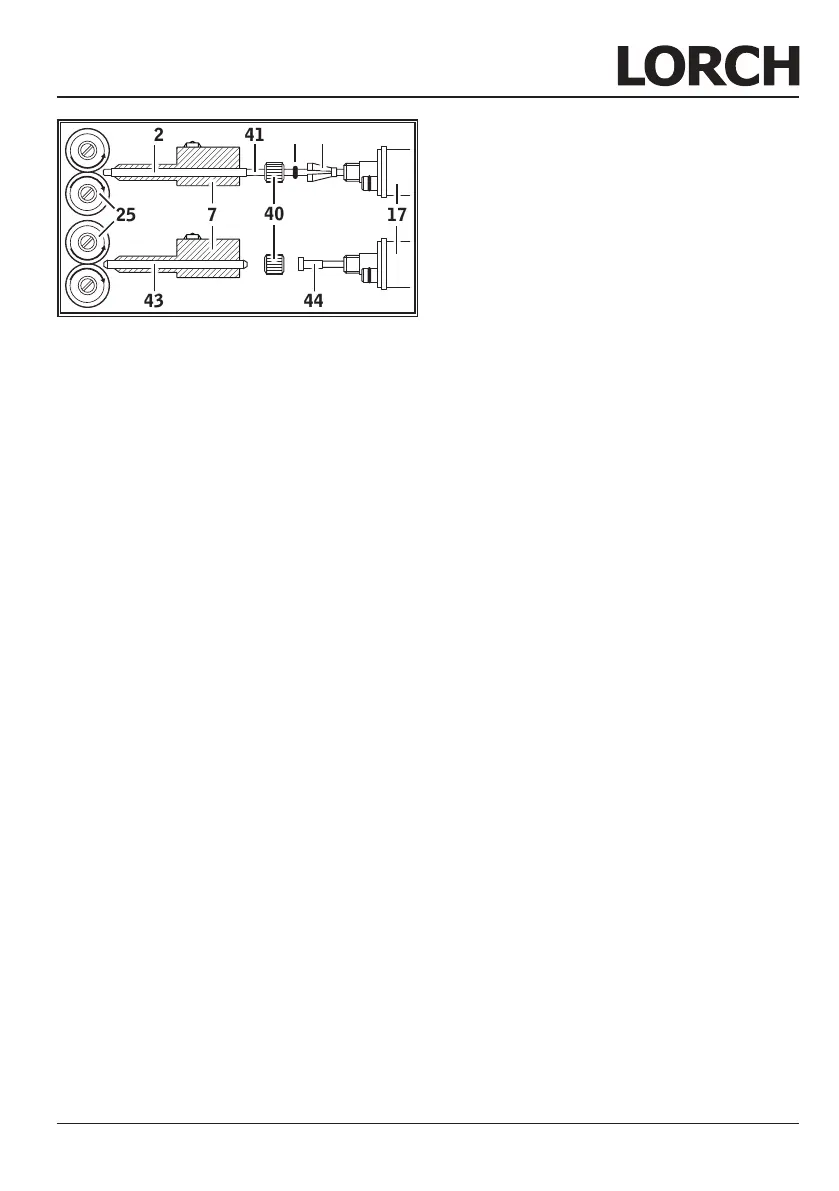

Abb. 16: Drahtführung
7 Zentralbuchse
17 Zentralstecker (Brenner)
25 Drahtvorschubrolle
38 Haltenippel (=Klemmteil) der Kunst-
stoffseelen für 4.0 mm und 4,7 mm
Außendurchmesser
39 O-Ring
40 Überwurfmutter
41 Kunststoffseele
42 Stützrohr für Kunststoffseelen mit 4
mm Außendurchmesser. Bei 4,7 mm
Außendurchmesser entfällt das Rohr.
43 Führungsrohr
44 Drahtführungsspirale
