Start-up
- 48 - 10.13
The characteristic selection knob 65 and
the corresponding table are in the wire
feed casing.
The table content may differ from
your welding machine. The char-
acteristic lines are set individually
for each machine type.
 Select the required material-wire-gas
combination from the characteristic table.
 Read the corresponding characteristic
number off from the right hand column.
 Set the corresponding number from the
table using selection knob 65.
Below the characteristic number 0 (man-
ual mode)
– is the material-wire-gas combination
nullied. Wire feed and welding volt-
age can be set manually.
– the welding step (Basic Plus) instead of
material thickness will be displayed.
– the must-value for welding voltage
(Control Pro) instead of material thick-
ness will be displayed.
If an unassigned number is set with
the characteristic selection knob
65, the 7-segment-display 47 will
display the error message „noP“.
13.4 Characeristic connection
65

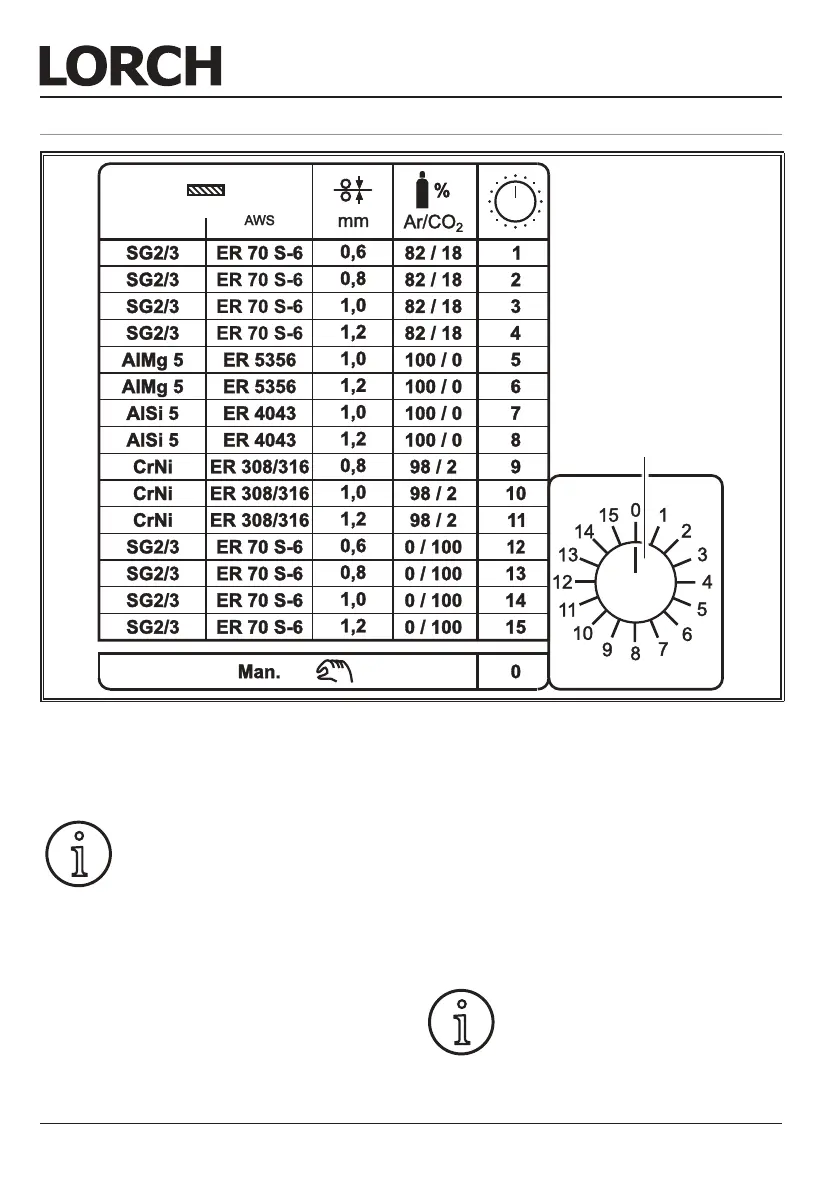

Abb. 19: Characteristic table and selection knob
