13.2 Control console ControlPro
46 51 53 5445 5047 49 52
56
55
5759 5860
61

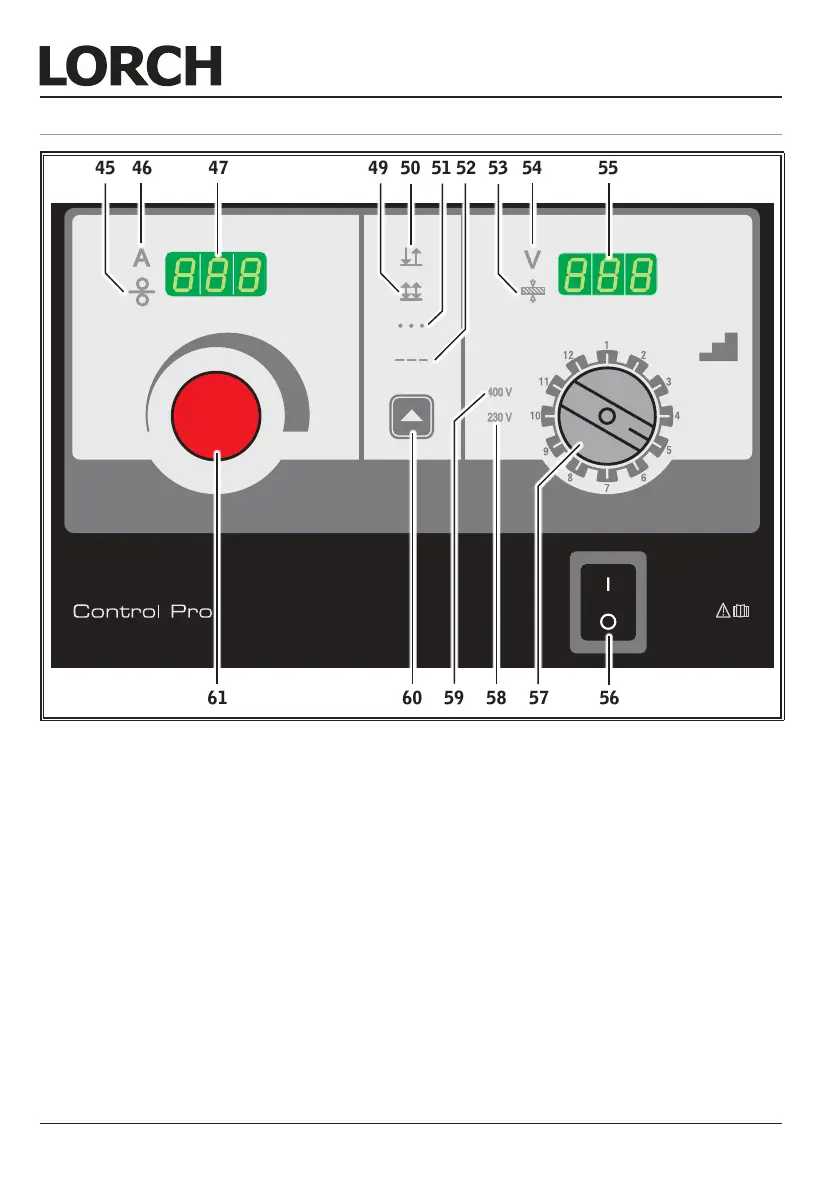

Abb. 18: Control console ControlPro
45 Symbol wire feed
lights up in the 7-segment display 47 if
the wire feed is displayed in m/min.
46 Symbol welding current
lights up if the 7-segment display 47
displays the welding current in Am-
pere.
47
7-Segment –display
welding current / wire feed
depending on set mode, either wire
feed, welding current or secondary
parameter value will be displayed.
49 Symbol 4-stroke
lights up if 4-stroke mode is selected.
50 Symbol 2-stroke
lights up if 2-stroke mode is selected
51 Symbol spot-welding
lights up if spot welding mode is se-
lected.
52 Symbol interval
lights up if interval mode is selected.
53 Symbol material thickness
Display 55 lights up if the material
thickness is displayed in mm.
54 54 Symbol welding voltage
lights up if the 7-segment-display 55
displays the welding voltage in V.
