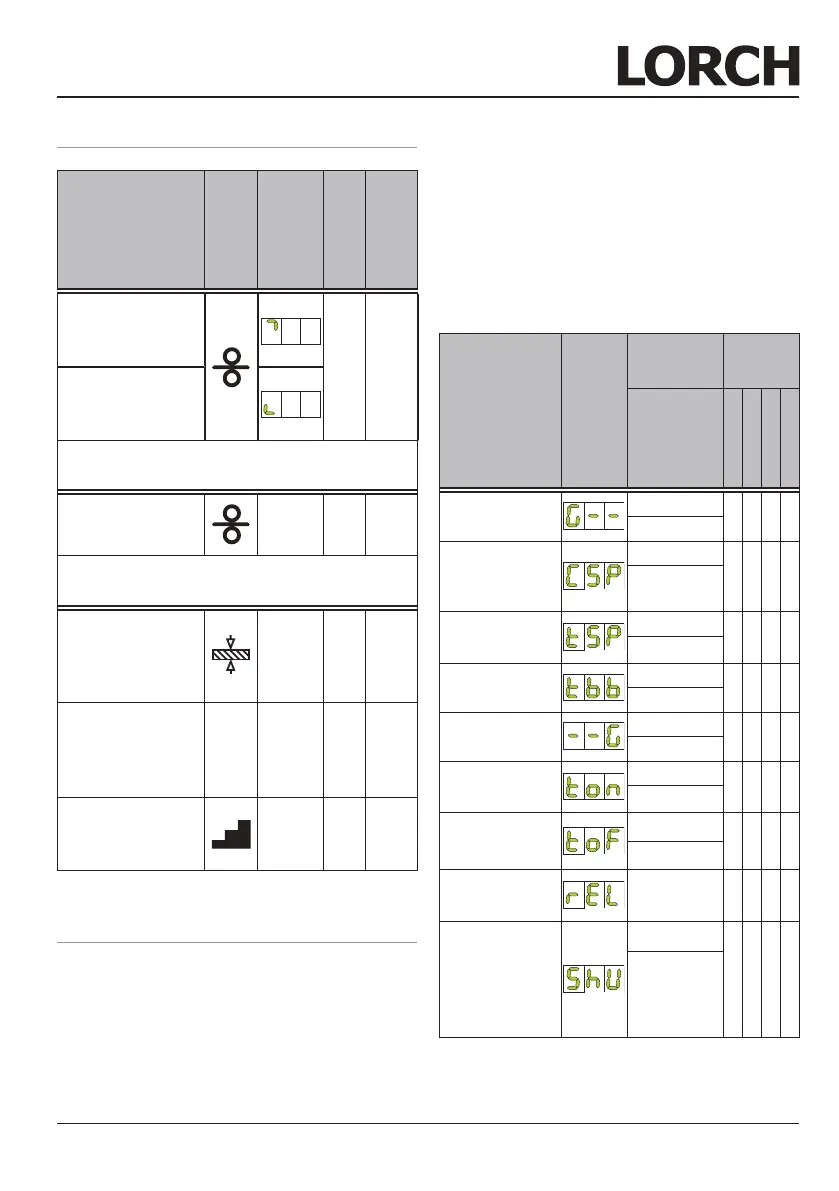

13.5 Main parameters
Parameter
Symbol
Code
Factory
setting
Range
Wire feed in %
(positive correc-
tion)
0
-80..
+99
Wire feed in %
(negativecorrec-
tion)
Displayed as correction value for settings at
turning knob 61.
Wire feed in
m/min
- -
0,5..
25
Displayed as speed value in m/min after
setting with turning knob 61.
Material thick-
ness (at selected
characteristic
line)
- - -
Must-value weld-
ing voltage (in
manual mode,
only Control Pro)
V
- - -
Welding step (in
manual mode) - -
1..6,
1..7
1..12
Tab. 6: Main parameters
13.6 Secondary parameters
 Press the mode key 60 for at least 2 sec-
onds.
9 The 7-segment display 47 displays the
secondary parameter code and value al-
ternately (BasicPlus).
9 The 7-segment display 47 displays the sec-
ondary parameter value, the 7-segment
display 55 displays the secondary param-
eter code (ControlPro).
 Press the mode key 60 until the required
secondary parameter code is displayed.
 Set the required secondary parameter
value using turning knob 61.
 Exit the secondary parameter by pressing
the mode key 60 for at least 2 seconds.
Parameter Code
Factory
setting
Mode
Range
2-stroke 4-stroke
Spot
Interval
Gas pre-ow
0,1 s
x x x x
0,0...10,0 s
Creep in
speed
2,0 m/min
x x x x
1,0...15,0
m/min
Spot welding
time
1,0 s
x
0,1...10,0 s
Backburn time
100 %
x x x x
0...300 %
Gas post-o
0,5 s
x x x x
0,1...20,0 s
Intervalltime
ON
1,0 s
x
0,1...10,0 s
Interval time
OFF
0,2 s
x
0,1...1,0 s
Software Ver-
sion
- x x x x
Must-value
welding volt-
age instead of
material thick-
ness
off
x x x x
off/on
Tab. 7: Secondary parameters
